Network reliability depends entirely on physical layer integrity. A single point of environmental damage to a fiber optic run causes catastrophic downtime and severe data loss. Facility managers and network architects constantly balance physical hazards against strict installation constraints. Rodents, crush risks, and moisture threaten outside plant infrastructure daily. At the same time, conduit space limitations, bend radius restrictions, hardware compatibility, and labor availability dictate what you can actually install in the field. Choosing the correct cable jacket prevents these failures.
We will evaluate armored versus unarmored fiber optic cables side-by-side. You must establish clear thresholds for when to specify each type based on the installation environment, compliance codes, and infrastructure offsets. We examine the structural differences, installation logistics, and hardware compatibility factors that drive successful network deployments without over-engineering the pathway.
Armored data cable is a mandatory specification for direct burial, heavy industrial environments, and high-risk rodent areas, though it introduces strict grounding requirements and installation complexity.
Unarmored fiber optic cable provides superior flexibility, smaller outer diameters, and lower upfront costs, making it the optimal choice for controlled indoor environments and pre-ducted pathways.
Lifecycle financial calculations must include labor, specialized handling equipment, and auxiliary materials; while armored cable requires higher initial material investment per foot, it frequently eliminates the need for expensive innerduct or conduit installations.
Specifying the incorrect jacket type risks either premature network failure due to physical shear/crush events or wasted capital expenditure on over-engineered, difficult-to-manage infrastructure that is incompatible with standard closures.
Understanding the mechanical divergence between cable types requires looking beneath the outer jacket. The protective layers dictate how a cable behaves during installation and its survivability in harsh environments. The internal components handle the data, but the external components ensure that data continues to flow after installation.
The internal glass fibers remain identical across both armored and unarmored variants. Whether you specify singlemode (OS2) for long-haul outside plant runs or multimode (OM3, OM4, OM5) fiber for short indoor data center links, the data transmission metrics do not change. Attenuation, bandwidth capacity, and modal dispersion are completely unaffected by the outer jacket. When technicians shoot an Optical Time-Domain Reflectometer (OTDR) trace on a newly installed run, the optical performance graph looks identical regardless of the armor. The engineering divergence between these cables is strictly mechanical and protective. You are selecting a physical defense mechanism, not altering the optical performance of the network.

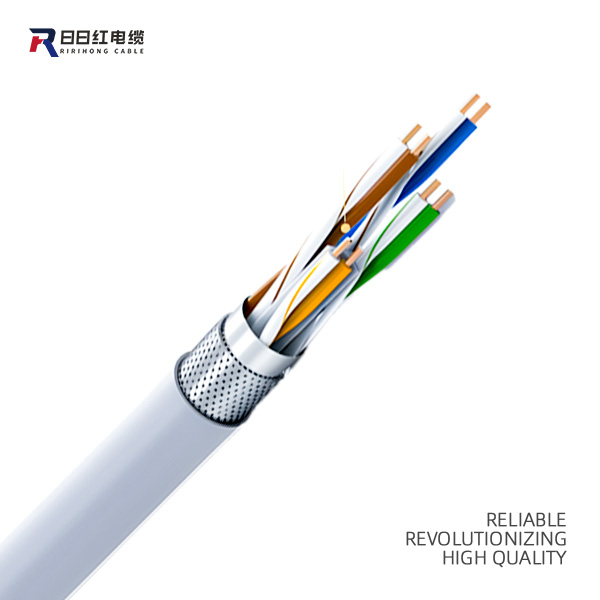

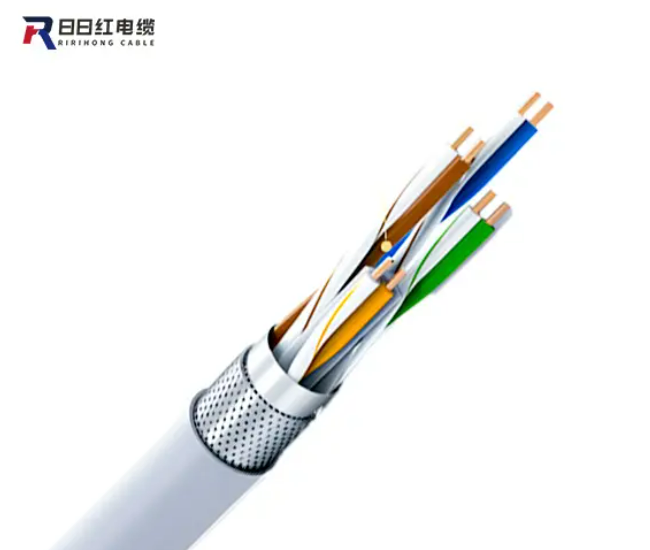

An Armored Data Cable incorporates a rigid layer designed to withstand severe mechanical stress. Manufacturers design this protective barrier in several forms depending on the intended application and the specific environmental threats present at the installation site.
Corrugated Steel Tape (CST): This design features a steel tape coated with a polymer, folded longitudinally around the inner cable core. The corrugation provides flexibility while offering exceptional lateral crush resistance. CST serves as the industry standard for rodent protection and moisture barriers in direct-buried outside plant (OSP) applications. The overlapping steel seam prevents gophers and rats from penetrating the core.
Interlocking Armor: Commonly made from aluminum or steel, this armor resembles the flexible metal conduit used in electrical wiring. It wraps spirally around the cable. Interlocking armor provides extreme crush resistance and is frequently deployed in heavy industrial indoor environments or manufacturing floors. It protects the glass fibers in areas where cables might be exposed to forklift traffic, dropped tools, or heavy machinery.
Dielectric Armor: Some environments require absolute electrical isolation, such as substations or pathways running parallel to high-voltage transmission lines. Non-metallic armored cables utilize hard polymers, dense fiberglass yarns, or fiberglass-reinforced plastic (FRP) rods. These materials provide high tensile strength and moderate crush resistance without introducing conductive metals into the pathway, eliminating the risk of induced currents.
The standard build of a metallic armored cable includes an outer polymer jacket (often UV-stabilized polyethylene for outdoor use), the metallic armor layer, an inner jacket, strength members (typically aramid yarn or Kevlar), and the central optical fibers housed in gel-filled or water-blocked buffer tubes.
Unarmored fiber optic cables omit the rigid protective layer entirely. They rely on dense layers of aramid yarns surrounding the buffer tubes to provide tensile strength during the pulling process. The outer polymer jacket provides basic defense against abrasion and environmental exposure. Depending on the application, this jacket might be Low Smoke Zero Halogen (LSZH) for indoor safety or standard Polyvinyl Chloride (PVC).
The absence of metal tape or interlocking coils results in a significantly lighter cable. The outer diameter (OD) is substantially reduced compared to armored variants. This compact form factor makes unarmored cable the default choice for high-density indoor routing, data center trays, and environments where pathway space is strictly limited. Installers can easily route dozens of unarmored cables through a single overhead tray without exceeding weight limits.
Armor Type | Primary Material | Best Application Environment | Rodent Protection Level |
|---|---|---|---|
Corrugated Steel Tape (CST) | Polymer-coated steel | Direct burial, OSP underground | Maximum |
Interlocking Armor | Aluminum or Steel | Industrial floors, manufacturing | High |
Dielectric Armor | Fiberglass / Hard Polymers | High-voltage areas, substations | Moderate |
Unarmored | Aramid Yarns only | Data centers, indoor conduits | None |
Selecting the correct cable requires a rigorous assessment of the installation environment. Specifying a jacket type without evaluating site-specific risks leads to premature infrastructure failure or wasted capital. Network architects must conduct a thorough site survey before finalizing the Bill of Materials.
Evaluate the physical threats present along the cable route. Rodent prevalence is a primary concern for OSP deployments. Gophers, rats, and squirrels possess continuously growing incisors and will chew through standard polymer jackets, severing the delicate glass fibers inside. If the route passes through rural areas, agricultural zones, or older urban utility vaults with known rodent activity, mechanical protection is mandatory. Unarmored cable will not survive a direct rodent attack.
Heavy machinery traffic poses another significant risk. Manufacturing facilities, warehouses, and industrial plants frequently expose cables to lateral crush forces. A dropped wrench or a forklift rolling over an exposed cable tray will instantly destroy unarmored fiber. Soil conditions also dictate selection. Rocky soil exerts uneven, localized pressure on direct-buried cables. Frost heaves in cold climates cause the ground to shift violently during freeze-thaw cycles, necessitating a rigid outer shield to prevent the cable from snapping under the geological strain.
Analyze the physical route the cable must traverse. Direct burial applications almost universally require armor to survive soil pressure and rock impingement. Aerial lashing requires high tensile strength to withstand wind and ice loading. If routing through existing underground conduits, you must calculate the current conduit fill capacity.
The National Electrical Code (NEC) strictly limits how much of a conduit's cross-sectional area can be occupied by cables. For a single cable, the maximum fill is 53%. For two cables, it drops to 31%. For three or more cables, the limit is 40%. The larger diameter of armored cables can easily violate these fill ratios if the conduit is already congested. You must measure the inner diameter of the existing conduit and cross-reference it with the outer diameter of the proposed cable to ensure compliance and prevent the cable from binding during the pull.
Determine the required lifespan of the cable run. OSP infrastructure is typically designed for a 20-to-30-year lifecycle. Evaluate your organization's tolerance for maintenance windows. Emergency splicing in the field is highly disruptive. If a specific cable run supports mission-critical operations where downtime is unacceptable, over-engineering the physical protection layer is a sound strategy. A severed backbone cable can take hours to locate, excavate, and splice, resulting in massive operational losses.
Comparing the capabilities of both cable types reveals distinct operational advantages and inherent limitations. The choice impacts physical survivability, installation footprint, and code compliance. Field technicians must understand these differences to handle the materials correctly during deployment.
Armored cables deliver superior lateral crush resistance. The metallic or hard dielectric layer absorbs blunt force impact, preventing the internal glass fibers from fracturing. Manufacturers test this resistance using strict industry standards, applying thousands of Newtons per centimeter (N/cm) to the cable jacket to ensure the glass remains intact. Corrugated Steel Tape (CST) designs specifically excel at rodent-proofing. The steel barrier stops incisors before they reach the inner jacket, preserving the optical core.
Unarmored cables are highly vulnerable to lateral pressure and shear forces. A sharp impact will crush the buffer tubes and shatter the glass. They offer zero resistance to rodents. If deployed outside of controlled, secure cable trays or racks, unarmored fiber strictly requires a protective conduit or innerduct to survive. Pulling unarmored cable through a rocky trench without conduit guarantees a network failure.
The smaller outer diameter of unarmored cable allows for tighter bend radii. This flexibility facilitates rapid routing through high-density data center patch panels, telecommunications rooms, and complex overhead tray systems. Installers can easily manage slack loops and navigate sharp corners without risking micro-bending losses. The general rule for unarmored fiber is a minimum bend radius of 10 times the cable's outer diameter under no tension, and 15 times the outer diameter during a pull.
Armored cables possess high rigidity. The larger OD and stiff metallic layers require careful handling. Exceeding the manufacturer's minimum bend radius risks permanent glass fracture or severe signal attenuation. Armored cables typically require a bend radius of 15 times the outer diameter under no tension, and 20 times the outer diameter during installation. This rigidity complicates routing in confined spaces and requires larger pull boxes and sweeping conduit bends.
Hardware compatibility is a critical factor. The increased girth of armored cables often exceeds the entry port tolerances of standard Drop Terminal Closures (DTCs) and conventional splice enclosures. Field technicians frequently discover that standard grommets and strain relief fittings cannot accommodate the armor. This necessitates purchasing specialized, oversized hardware or utilizing custom transition enclosures to safely terminate the run.
Metallic armored cables introduce specific electrical safety requirements. The National Electrical Code (NEC) Article 770 mandates proper bonding and grounding of all metallic cable components at termination points. Technicians must bond the armor to the building's intersystem bonding termination. This prevents the armor from becoming energized in the event of a fault and mitigates lightning hazards in OSP deployments. Failure to properly ground the armor can create dangerous ground loops, damage sensitive network equipment, and create severe life-safety hazards for technicians working on the racks.
Indoor building codes dictate fire safety ratings. Both armored and unarmored cables are available with plenum (OFCP/OFNP) and riser (OFCR/OFNR) ratings. Specifying an indoor armored cable requires ensuring the jacket material meets the specific flame spread and smoke generation requirements for the designated pathway. You cannot run an OSP-rated armored cable with a standard polyethylene jacket more than 50 feet into a building without transitioning to an indoor-rated cable, per NEC fire codes.
Evaluating the financial impact of cable selection requires looking beyond the price per foot. The chosen jacket type fundamentally alters the required auxiliary materials and infrastructure preparations. A cheaper cable might require vastly more expensive pathway construction.
Armored cables carry a higher upfront material cost. The manufacturing process is more complex, requiring additional extrusion steps and the integration of steel or aluminum layers. This increased complexity translates directly to a higher initial expenditure compared to standard unarmored variants. When ordering thousands of feet for a campus backbone, this material cost difference appears substantial on the initial procurement sheet.
The higher material cost of armored cable is frequently offset by massive infrastructure savings. Deploying unarmored cable in an OSP environment requires purchasing and installing rigid PVC conduit, high-density polyethylene (HDPE) innerduct, or corrugated tubing to provide physical protection. Trenching, laying conduit, gluing joints, and backfilling is highly labor-intensive.
Armored cable can often be direct-buried without additional conduit. By eliminating the need for innerduct and the associated installation labor, the net material and deployment cost of an armored run frequently drops below that of an unarmored run requiring extensive pathway construction. This offset is particularly evident in long-haul OSP routes and harsh industrial applications where installing rigid conduit is logistically difficult or impossible due to existing underground utilities.
The physical characteristics of the cable dictate the logistics of the deployment. Weight, flexibility, and termination complexity directly impact labor hours and equipment requirements. Field crews must prepare differently depending on the jacket type.
The metallic layers significantly increase the weight of armored cables. Heavy-duty spool handling equipment, such as reel trailers, hydraulic A-frame jacks, and heavy-duty capstan winches, are mandatory for OSP deployments. The increased weight requires larger installation crews to safely maneuver the cable during the pull. Logistics are more complicated, as shipping heavy spools incurs higher freight costs and requires forklifts for site offloading compared to lightweight unarmored spools that two technicians can carry manually.
Unarmored cable pulls significantly faster through existing, smooth pathways. Its low weight and high flexibility reduce friction against conduit walls. Installers can navigate sweeps and elevation changes with minimal pulling tension. This speed translates to reduced labor hours for indoor and pre-ducted deployments. Technicians can often pull unarmored fiber by hand using simple fiberglass fish tapes.
Pulling armored cable requires careful tension monitoring. While the cable has high tensile strength, the rigidity makes navigating conduit sweeps difficult. High friction can cause the armor to bind inside the pathway. Installers must use appropriate pulling lubricants, breakaway swivels to prevent over-tensioning, and mechanical tuggers for long runs. If the breakaway swivel snaps, the crew must pull the cable back out and restart the process, causing severe delays.
Prepping armored cable for splicing requires specialized tools and additional labor time. The termination process involves several meticulous steps that unarmored cables do not require.
The technician measures the required breakout length and marks the outer jacket.
Using a specialized rotary armor slitter, the technician scores the metallic layer circumferentially and longitudinally without penetrating the inner jacket or damaging the buffer tubes.
The technician carefully flexes the cable at the score mark to snap the armor, then slides the severed armor section off the core.
A grounding clamp is securely attached to the exposed metallic armor at the entry point of the splice enclosure.
The technician removes the inner jacket and snips the aramid strength members before finally accessing the optical fibers for cleaning and cleaving.
This process is time-consuming. Unarmored cable prep is much faster. Technicians simply score the outer jacket, pull the rip cord, snip the aramid yarns with Kevlar shears, and immediately access the buffer tubes. When terminating hundreds of fibers in a high-density distribution frame, the accumulated time savings of unarmored prep are substantial.
Deploying fiber optic infrastructure involves navigating specific physical and logistical risks. Recognizing these pitfalls allows network architects to design resilient pathways and avoid costly rework.
Specifying armored cable in standard indoor cable trays wastes budget, adds unnecessary weight to overhead supports, and complicates future Moves, Adds, and Changes (MACs). The rigidity makes dressing cables in server racks frustrating and inefficient. Conversely, under-protecting OSP runs by deploying unarmored cable without conduit leads to rapid failure from rodent damage, soil shifting, or accidental dig-ins by landscaping crews.
Mitigation: Implement hybrid deployment strategies. Utilize lightweight unarmored cable for indoor distribution, data centers, and secure risers. Transition to armored cable for OSP routes, direct burial segments, and building entrances. Use proper transition enclosures, such as a Building Entrance Terminal (BET) or a dedicated splice closure mounted on the exterior wall, to safely splice the indoor and outdoor cables together. This approach optimizes both physical protection and installation budget.
The girthy nature of armored cable can easily exceed cable tray weight limits, especially in older facilities with aging infrastructure. It can violate NEC Chapter 9 conduit fill ratios, leading to code violations and failed municipal inspections. Furthermore, field technicians frequently discover that armored cables fail to fit into standard OSP Drop Terminal Closures (DTCs), stalling deployment while crews wait for replacement parts.
Mitigation: Mandate accurate load calculations and pathway audits prior to procurement. Calculate the exact cross-sectional area of the proposed cables against the existing conduit dimensions. Verify hardware compatibility by checking the maximum cable outer diameter supported by your chosen splice enclosures and DTCs. If the armored cable exceeds the port limits, you must specify oversized closures or utilize transition hardware before finalizing the order.
Armored cable serves as a necessary insurance policy against physical and environmental damage in harsh conditions. Unarmored cable remains the standard for controlled, high-density, and pre-ducted environments. Specifying the correct jacket type ensures network longevity and optimizes installation efficiency. To ensure a successful deployment, execute the following steps:
Conduct a physical pathway audit to identify environmental hazards, crush risks, and potential rodent activity along the entire route.
Calculate existing conduit fill capacities to ensure the larger diameter of armored cables will not violate NEC standards or cause binding during the pull.
Verify DTC and splice closure compatibility by cross-referencing the cable's outer diameter with the hardware's maximum port entry specifications.
Consult with a certified low-voltage installer regarding proper bonding and grounding requirements if specifying metallic armored cables.
A: No. Unarmored fiber optic cable lacks the mechanical strength to withstand soil pressure, rock impingement, and frost heaves. It also offers zero protection against rodents. If you must bury unarmored cable, you must install it inside a rigid protective conduit or high-density polyethylene (HDPE) innerduct.
A: Yes. The National Electrical Code (NEC) requires all metallic components of a fiber optic cable to be properly bonded and grounded at termination points. This prevents the armor from carrying dangerous voltages during a fault and mitigates lightning strike hazards in outside plant deployments.
A: Interlocking armor consists of spirally wrapped aluminum or steel, resembling flexible conduit, providing extreme crush resistance for indoor industrial use. CST is a longitudinally folded, polymer-coated steel tape that offers excellent moisture barriers and rodent protection, making it ideal for direct-buried outside plant applications.
A: The armor itself provides mechanical protection, not waterproofing. However, outdoor-rated armored cables utilize water-blocking tapes, swellable yarns, or gel-filled buffer tubes inside the jacket to prevent moisture migration. Always verify the cable has an OSP or water-blocked rating for wet environments.
A: Armored cable has a significantly larger minimum bend radius due to its rigid metallic layers and larger outer diameter. Bending it too tightly can permanently deform the armor and fracture the glass. Unarmored cable is highly flexible and supports much tighter bend radii for dense routing.
A: Yes, provided it meets the correct fire safety ratings. Indoor armored cables must have plenum (OFCP) or riser (OFCR) rated jackets to comply with building codes. Interlocking aluminum armor is commonly used indoors for industrial environments where physical crush risks exist.
