Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms
RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency
Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.

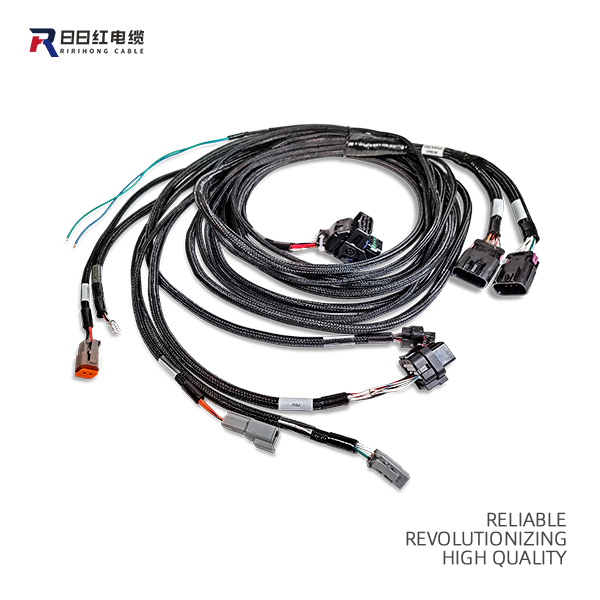

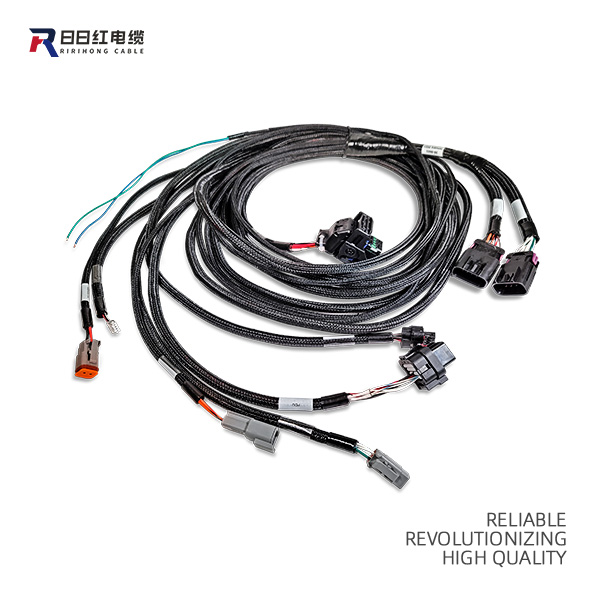

| Front Wiring Harness | ||||||||
| AWG Size | Conductor Area (mm²) | Voltage Rating | Current Rating | Insulation Type | Conductor Material | Core Type | No. of Conductors | Used For |
| 20 – 16 AWG | 0.5 – 1.3 mm² | 12V – 48V DC | 5 – 15 A | PVC / XLPE / TPE | Tinned Copper | Stranded | 20 – 80+ | Headlights, sensors, switches, fans |
| 22 – 18 AWG | 0.34 – 0.82 mm² | 12V – 24V DC | 3 – 10 A | PVC / FEP | Tinned Copper | Stranded | 40 – 100 | Dash electronics, control signals |
| 14 – 10 AWG | 2.1 – 5.3 mm² | 12V – 60V DC | 15 – 45 A | XLPE / Silicone | Bare Copper | Stranded | 2 – 10 | Radiator fans, alternator, fuse box lines |
| 26 – 24 AWG | 0.13 – 0.2 mm² | 5V – 12V (signal) | <2 A | PE / PVC / FEP | Tinned Copper | Stranded | 20 – 50 | CAN bus, data lines, ECU communication |
| Rear Wiring Harness | ||||||||
| AWG Size | Conductor Area (mm²) | Voltage Rating | Current Rating | Insulation Type | Conductor Material | Core Type | No. of Conductors | Used For |
| 20 – 16 AWG | 0.5 – 1.3 mm² | 12V – 48V DC | 5 – 15 A | PVC / TPE / XLPE | Tinned Copper | Stranded | 15 – 60+ | Rear lighting, trunk actuators, cameras |
| 24 – 22 AWG | 0.2 – 0.34 mm² | 5V – 12V (signal) | <5 A | PVC / FEP | Tinned Copper | Stranded | 20 – 40 | Rear sensors, fuel level sensors |
| 14 – 10 AWG | 2.1 – 5.3 mm² | 12V – 60V DC | 15 – 45 A | Silicone / XLPE | Bare Copper | Stranded | 2 – 8 | EV charge port, rear fuse links |
| Front Wiring Harness | Rear Wiring arnesses | ||
| Engine Management | Sensors (O2, MAF, knock), ignition coils, fuel injectors | Rear Lighting | Tail lights, reverse lights, brake lights, turn signals |
| Lighting | Headlights, DRLs, fog lights, turn indicators | Trunk Functions | Power tailgate, rear-view camera, cargo lighting |
| HVAC & Cooling | Radiator fan, blower motor, A/C compressor clutch | Safety & Sensors | Parking sensors, radar units, rear airbags |
| Instrument Cluster & Controls | Gauges, switches, dashboard indicators, steering controls | Fuel & Emissions | Fuel pump, fuel level sensor, EV charge port |
| Safety Features | Airbags (front), ABS sensors, horn | Entertainment | Rear speakers, entertainment screens, USB outlets |
| Communication | ECU/TCU interconnects, CAN/LIN/FlexRay lines | Battery or Auxiliary Units | 12V battery, rear fuse box, EV battery interconnects |
Apply cable base on its insulation property
Always de-energize the system before working on cables
Proper PPE duing operation
| Feature | Why It Matters |
| Correct Wire Gauge (AWG) | Ensures the harness can handle the required current without overheating or voltage drop. |
| Stranded Copper Conductor | Offers flexibility and durability—resists vibration and bending fatigue better than solid wire. |
| Heat-Resistant Insulation | Prevents insulation breakdown in hot areas like the engine bay (front harness); maintains system safety. |
| Moisture-Resistant Jacket | Protects rear harness from water ingress, especially in trunk and exterior areas. |
| Modular Design | Simplifies assembly and replacement—modules can be easily plugged or swapped during repairs. |
| Color-Coded Wires | Speeds up troubleshooting, repairs, and ensures correct installation during manufacturing. |
| Weight Optimization | Critical for EVs and fuel-efficient vehicles—reduces unnecessary wire size and excess material. |
| EMC Compliance | Ensures the vehicle meets legal and safety standards for electronic interference and emissions. |
| Fire-Retardant Materials | Improves safety by limiting flame spread in case of short circuits or system failures. |
| Testing & Quality Checks | Verifies function, safety, and durability before harnesses are installed—prevents costly recalls. |
| Shielded Signal Lines | Reduces EMI (electromagnetic interference) in sensitive signal wires (CAN, camera, radar, sensors). |
| Proper Connector Selection | Ensures secure mechanical/electrical connection and environmental sealing (IP67/IP69K rated if needed). |
| Harness Wrapping (Tapes/Sleeves) | Protects against abrasion, improves aesthetics, and organizes wires for efficient routing. |
| Routing Compatibility | Designed to fit chassis layout—avoids sharp bends, pinching, or interference with moving parts. |
| Vibration Resistance | Vital for longevity—prevents conductor fatigue and intermittent electrical faults. |
| Spare Wires or Pins | Future-proofs the system—supports upgrades or additions without redesigning the entire harness. |
