High & Low Voltage Wiring Harness

High and Low Voltage Wiring Harnesses are used to manage the distribution of electrical power and signal transmission across a wide voltage range in complex systems — such as electric vehicles, industrial equipment, aerospace systems, and smart infrastructure.
They are typically segregated but work together in parallel, where:
High voltage harnesses carry power (typically ≥60V DC / ≥30V AC),
Low voltage harnesses carry control signals, communication, or low-power circuits.

500 Meters(MOQ)
Please inquire for detailed specs and pricing.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage

Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms
RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency
Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.

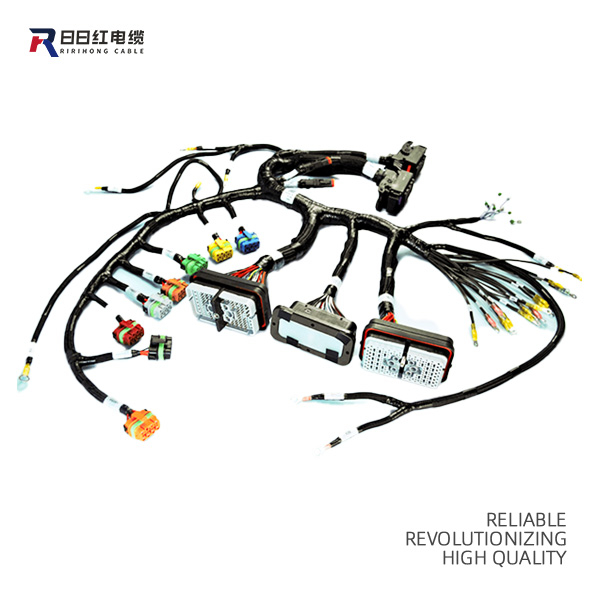

High and low voltage wiring harness

Technical Parameters

AWG Size	Conductor Area (mm²)	Voltage Rating	Current Rating (Ampacity)	Insulation Type	Conductor Material	Core Type	Typical No. of Conductors	Applications
14 AWG	2.1 mm²	600V – 1000V	15 – 25 A	XLPE / Silicone / PTFE	Bare Copper	Stranded	2 – 12	High-power LED, auxiliary inverters
12 AWG	3.3 mm²	600V – 1000V	20 – 30 A	XLPE / PTFE / Silicone	Bare Copper	Stranded	2 – 10	EV battery chargers, motor supplies
10 AWG	5.3 mm²	1000V – 1500V	30 – 55 A	XLPE / Heat-resistant Silicone	Bare Copper	Stranded	2 – 8	EV motor to controller harness
8 AWG	8.4 mm²	1000V – 1500V	40 – 70 A	Silicone / PTFE	Bare Copper	Stranded	2 – 4	EV traction, solar power interconnects
6 AWG	13.3 mm²	1000V – 2000V	55 – 90 A	XLPE / Silicone	Bare Copper	Stranded	2 – 3	High-current EVSE, inverter lines
4 AWG	21.2 mm²	1000V – 2000V	85 – 130 A	Silicone / XLPE	Bare Copper	Stranded	2 – 3	Battery to inverter harness
2 AWG	33.6 mm²	1000V – 2000V	120 – 180 A	Silicone / PTFE	Bare Copper	Stranded	2 – 3	HV battery cables, DC fast charge
1/0 AWG	53.5 mm²	1500V+	150 – 250 A	XLPE / Heat-resistant Silicone	Bare Copper	Stranded	1 – 2	Main HV propulsion harness

Product Uses

Electric & Hybrid Vehicles, battery pack to inverter, charger, controller, sensors,dashboard,signal control etc
Industrial Equipments, motor drives, heaters, power distribution, limit switches,signal feedback
Renewable Energy Systems, battery inerconnects, monitoring sensor, data links
Aerospace & Rail, cabin power, propulsion subsystem,safety systems

Product Operate Guide

Apply cable base on its insulation property
Avoid bends
Always de-energize the system before working on cables
Proper PPE duing operation

Comparison

Feature	High Voltage Harness	Low Voltage Harness
Voltage Range	60V–1500V DC / 30V–1000V AC	<60V DC / <30V AC
Typical Current	10 A – 250 A+	Milliamps to 20 A
Main Function	Power delivery for motors, batteries, heaters	Signal/control for sensors, ECUs, infotainment
Used In	EV powertrain, industrial motors, solar power	Lighting, cameras, CAN bus, switches, infotainment
Insulation	XLPE, Silicone, Teflon (heat/voltage resistant)	PVC, TPE, FEP (flexible, compact)
Conductor Size (AWG)	2 AWG – 14 AWG	28 AWG – 16 AWG
Shielding	Required for EMI in some applications	Often shielded for data (CAN, USB, video)
Color Coding	Orange (standard for HV in EV), black, red	Multiple colors depending on function
Connector Types	HVIL, Amphenol, TE HV, Anderson, custom plugs	Molex, JST, automotive pins, USB, AMP
