Selecting the right wiring components goes far beyond ensuring basic signal transmission. You must carefully balance your overall project scale against strict local fire codes and harsh environmental factors. Improper selection inevitably leads to severe voltage drop, disruptive electromagnetic interference (EMI), or failed compliance inspections. Installers simply cannot afford to rip and replace wiring behind finished walls or ceilings. Over time, these foundational errors inevitably compromise network speed, security system reliability, and overall building safety. This comprehensive guide provides a highly technical, compliance-focused framework. We designed this specific resource to help you evaluate and shortlist options effectively. You will discover exactly how to differentiate products for distinct residential and commercial applications. We aim to equip you to make authoritative, code-compliant decisions before the physical installation phase begins.
Application Dictates Rating: Commercial installations strictly require Plenum (CMP) or Riser (CMR) jackets to meet fire codes, whereas residential projects often rely on standard CM ratings.
Distance vs. Gauge: Preventing voltage drop is the primary performance metric; heavier gauges (lower AWG) are mandatory for longer runs.
Interference Mitigation: Low voltage wiring must be physically separated from standard high-voltage electric cable to prevent signal degradation and safety hazards.
Subsystem Specificity: Security, AV, and networking each require distinct cable constructions (e.g., composite vs. twisted pair) to guarantee system reliability.
You must frame the fundamental business problem accurately before purchasing any raw materials. The basic physics of signal transmission remain identical across all scenarios. Electrons flow through copper conductors the exact same way. However, the operational scale and regulatory environments differ drastically between building types. We must separate these two environments to understand proper material specification.
Modern homes integrate increasingly complex technology. You typically focus on localized smart home integrations, advanced HVAC thermostat controls, and exterior landscape lighting. Assessors maintain standard, relatively lenient compliance expectations here. You usually conceal wiring safely inside standard drywall cavities. Installers rarely need expensive plenum-rated jackets for typical single-family homes.
Focuses on brief, localized cable runs.
Primarily utilizes standard General Purpose (CM) jackets.
Requires flexible solutions for retrofitting behind finished walls.
Prioritizes cost-efficiency over extreme environmental durability.
Commercial facilities demand a completely different engineering approach. They require immense operational scale and guarantee continuous network uptime. You must support complex, multi-floor infrastructure grids seamlessly. Inspectors demand strict, unwavering adherence to National Electrical Code (NEC) standards. This particularly applies to specialized air-handling spaces hidden above drop ceilings.
Consider the financial impact of poor upfront planning. Over-specifying materials unnecessarily inflates project budgets. You waste valuable money using expensive commercial-grade plenum jackets in basic residential setups. Conversely, under-specifying materials in commercial spaces guarantees immediate code violations. Inspectors will legally force you to strip out and replace non-compliant wiring. This specific mistake destroys profit margins, delays occupancy permits, and ruins contractor reputations.

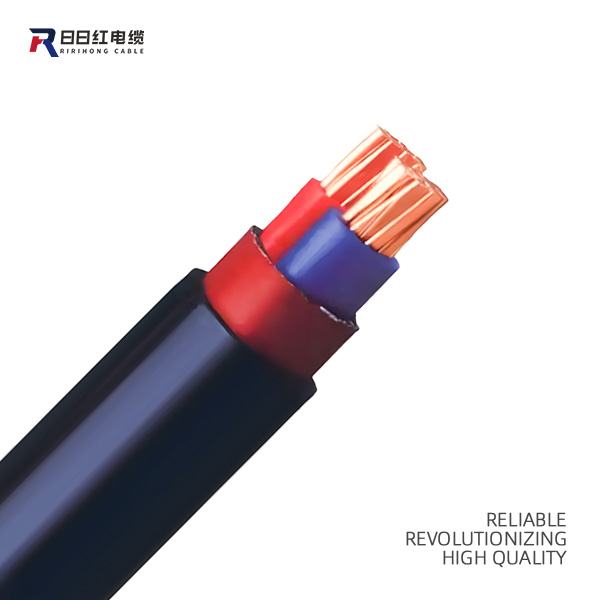

We categorize wiring based on precise application demands. Different subsystems require specialized internal constructions to perform reliably. You must match the physical architecture of the wire to the digital requirements of the hardware. Properly matched Low Voltage Cable ensures long-term system longevity and significantly reduces future maintenance calls.
You must evaluate current bandwidth realities against future-proofing needs. Cat5e supports basic gigabit speeds easily. However, Cat6 and Cat6a offer superior internal shielding and support much higher frequencies. They handle complex corporate networking and high-resolution IP-based security cameras effortlessly. Cat6a supports 10-Gigabit speeds over 100 meters, making it the supreme choice for modern data centers.
Many novice technicians mistakenly consider coax outdated. Yet, it maintains enduring relevance for specific radio frequency (RF) transmissions. You still heavily rely on it for legacy CCTV camera systems and high-bandwidth ISP entry points. RG-6 provides excellent thick shielding against signal loss over incredibly long distances. It utilizes a thicker copper core compared to the older RG-59 standard.
These straightforward copper configurations remain incredibly useful across industries. You use them primarily for basic contact closures. They reliably connect HVAC thermostats, alarm keypads, and standalone access control panels. They prioritize simple, steady current delivery over high-speed data transmission. You will typically find these in 2-conductor or 4-conductor formats.
Outdoor projects introduce severe, relentless environmental threats. You must select products explicitly engineered for exterior durability. We highlight essential features like specialized UV-resistant outer jackets. They must also contain internal moisture-blocking gel or specialized water-blocking tape. These crucial elements prevent underground water ingress from oxidizing and destroying the internal copper strands over time.
You must evaluate several physical dimensions before shortlisting any specific product. We use these critical metrics to guarantee both safety and operational functionality. Ignoring these physical parameters invites catastrophic system failure.
Preventing voltage drop remains your absolute top priority for long-distance runs. Thicker wire corresponds to a lower American Wire Gauge (AWG) number. We recommend establishing a strict framework for calculating your distance limits based on device wattage. You must use heavier 12/2 or 14/2 gauges for long exterior landscape lighting runs. Thin wires cause severe voltage drop, leaving distant LED fixtures dim or flickering. Conversely, a highly flexible, thin 22/4 wire easily suffices for short indoor security sensor drops.
You need to evaluate environmental electromagnetic interference (EMI) risks carefully. Unshielded Twisted Pair (UTP) works perfectly for standard office environments. However, Shielded Twisted Pair (STP) becomes strictly necessary in harsh environments. You must use STP on industrial manufacturing floors. It protects fragile digital signals running near heavy machinery. You also urgently need specialized shielding when routing data lines close to traditional, high-voltage Electric Cable.
Fire safety ratings legally dictate specific installation locations. We structured the following comparison chart to clarify confusing NEC regulations.
Rating Type | Abbreviation | Primary Application | NEC Compliance Standard |
|---|---|---|---|
Plenum | CMP | Drop ceilings & raised floors handling HVAC return air | Highest fire resistance; strictly limits toxic smoke emission |
Riser | CMR | Vertical shaft runs connecting multiple building floors | Prevents vertical flame spread across floor levels |
General Purpose | CM | Standard in-wall residential or basic commercial use | Basic flame resistance for enclosed standard drywall spaces |
Commercial environments push technological subsystems to their absolute limits. You must deliberately optimize your wiring choices to match highly specific equipment demands. Generic solutions rarely survive long in heavy commercial usage.
Installers save massive amounts of expensive labor using clever composite cables. The industry affectionately calls these "banana cables" due to their distinct yellow coloring. They smartly combine power lines, card reader data pairs, and door strike wires inside one thick master jacket. You pull one single line instead of actively managing four separate spools. This operational efficiency dramatically reduces labor hours on large commercial sites.
Professional commercial audio requires pristine, uninterrupted signal integrity. You should consistently evaluate oxygen-free copper (OFC) products for high-end AV installations. Microscopic impurities in standard copper gradually degrade sound quality over long distances. Higher strand counts also maintain audio fidelity beautifully. Furthermore, heavily stranded wires offer far better physical flexibility. This flexibility proves essential for routing wires neatly behind complex, crowded AV equipment racks.
Modern data networking now serves a powerful dual-purpose role. Cables actively deliver both raw digital data and DC electrical power simultaneously. You use Power over Ethernet (PoE) to run sophisticated LED lighting grids and enterprise Wi-Fi access points. This dual functionality naturally generates internal physical heat. You must select products possessing higher internal heat dissipation standards. Bundling too many high-wattage PoE lines tightly together causes severe overheating. This overheating degrades network packets and creates hidden structural fire hazards.
Even perfect materials fail miserably during sloppy installations. You must understand the harsh physical realities of pulling wire through complex architectural structures. Poor handling instantly negates premium manufacturing.
Every product carries strict, unyielding mechanical thresholds. You face severe operational risks if you exceed maximum pull tension during installation. Violently yanking lines through tight conduits permanently stretches the internal copper. This stretching violently alters the wire's electrical resistance. You must also never ignore minimum bend radius rules. Sharp, aggressive corners permanently damage data and coaxial lines. Kinking a Cat6 line instantly destroys its high-speed bandwidth capabilities, forcing a complete replacement.
Electrical inspectors rigorously enforce NEC physical separation rules. You must maintain distinct, measurable physical distance between sensitive data lines and traditional high-voltage wiring. Novice installers often make the critical mistake of running both types parallel within the same tight stud bay. This parallel routing causes devastating magnetic induction. The high-voltage magnetic field literally bleeds into the delicate data line. This ruins digital packets, slows down networks, and triggers false alarms in security panels.
Many reckless contractors try to save money using standard indoor materials outside. We strongly warn against using standard PVC jackets outdoors. Direct, unshielded sunlight breaks down normal plastics in a matter of mere months. Ultraviolet rays brutally crack the jacket, exposing bare copper directly to rain and humidity. You must use specialized UV-rated black jackets. Alternatively, you must strictly route all exterior lines through watertight, protective PVC conduit.
Selecting a highly reliable supply chain partner actively protects your project timeline. You must vet vendors rigorously before officially issuing any purchase orders. Material failures post-installation cost thousands in unbillable labor.
We emphatically advise all buyers to demand explicit proof of certification. Always look for genuine UL Listing or ETL Verification marks printed directly on the jacket. Unscrupulous, low-tier suppliers often push substandard copper-clad aluminum (CCA) counterfeits. CCA wire handles data transmission poorly and snaps incredibly easily during standard installation. Crucially, it violates commercial building codes for all modern PoE applications due to high electrical resistance.
You should thoroughly evaluate suppliers based on their practical packaging options. Smart packaging directly reduces frustrating job site labor times. Cardboard pull-boxes dispense wire smoothly without annoying tangles or snags. Heavy wooden spools work far better for massive, machine-assisted backbone pulls. You must deliberately match the packaging format to your specific crew size and planned installation methodology.
You need a highly structured plan before contacting a distributor. We recommend following this simple checklist to organize your upcoming procurement request:
Map out your exact linear footage requirements per individual subsystem.
Identify all required fire ratings based strictly on your HVAC floorplan.
Determine your maximum physical run distances to calculate required AWG gauges.
Consult your system schematics to locate specialized shielding needs.
Submit these highly detailed metrics to a technical sales representative for a precise, binding quote.
Proper upfront evaluation guarantees long-term system stability. You secure this stability only by meticulously analyzing wire gauge, jacket fire ratings, and proper shielding requirements. Remember our core rule: over-specifying guarantees compliance but needlessly wastes your budget. Conversely, under-specifying introduces severe operational failures and massive legal liabilities. You must precisely match the material to the exact architectural environment.
We encourage you to map your runs and consult official code books early. Download official manufacturer spec-sheets to verify critical certifications. Finally, engage a technical sales consultation to finalize your bill of materials securely.
A: No. The National Electrical Code (NEC) dictates strict physical separation between them. Running them parallel creates magnetic induction. The high voltage bleeds electromagnetic interference (EMI) into the data lines, causing severe signal degradation. You must intersect them at a 90-degree angle if they must cross.
A: It depends heavily on total wattage and wire gauge. As a general rule of thumb, a 12-gauge (12/2) wire reliably supports 100 watts up to 100 feet without noticeable voltage drop. Exceeding these limits causes your distant lights to dim significantly.
A: Usually no. Residential basements rarely utilize the ceiling space itself as an active HVAC return air pathway. Standard General Purpose (CM) or Riser (CMR) jackets generally suffice. However, always consult your local municipal code inspector, as regional amendments sometimes override standard guidelines.
A: Solid cable uses one single, thick copper core per conductor. It pushes signals further and forms permanent in-wall infrastructure. Stranded cable utilizes many tiny copper threads woven together. It offers superior flexibility, making it ideal for short patch cords and frequent bending.
