Low voltage wiring refers to electrical cabling specifically engineered to carry electrical current at voltage levels generally defined as 50 Volts or less for signal circuits, or up to 1000 Volts (1kV) for auxiliary low voltage distribution systems.
To evaluate low voltage cabling accurately from an engineering perspective, one must understand that standard municipal utility grids and heavy primary machinery feed off medium to high voltage infrastructure. Conversely, control logic, digital communication networks, sensor arrays, and auxiliary power sub-circuits operate under controlled low voltage parameters. In North America, low voltage circuits are often governed by the National Electrical Code (NEC) Class 2 and Class 3 frameworks, which limit the power output of the source to prevent electrical shock and thermal ignition. In international standards, low voltage power distribution encompasses AC voltages up to 1000V and DC voltages up to 1500V.
Within standard industrial facility design, operating at lower voltage thresholds minimizes arc flash hazards, reduces thermal stress on conductor terminals, and permits lighter, more flexible cable architectures. Electrical contractors and system integrators frequently utilize specialized Low Voltage Cable constructions to connect field devices, control cabinets, programmable logic controllers (PLCs), and localized actuators. The physical wire gauges, insulation compounds, and stranding configurations are selected based on precise electrical loads and environmental exposure levels.
When specifying wiring for industrial facilities, structural insulation and resistance parameters must align with operational ambient conditions. Standard high-voltage power lines rely on bulk insulation layers to prevent massive dielectric breakdown. In contrast, low voltage cabling focuses on low conductor resistance, tight tolerance cross-sectional concentricity, and specialized outer jacketing materials that resist mechanical abrasion, chemical attack, moisture ingress, and electromagnetic noise.
Technical Parameter | Standard Signal/Control Specification | Low Voltage Distribution Specification |
Rated AC Voltage Threshold | 30V - 300V | 600V - 1000V |
Conductor Material | Oxygen-Free Bare/Tinned Copper | High-Conductivity Annealed Stranded Copper |
Primary Insulation Material | PVC, HDPE, XLPE | Cross-Linked Polyethylene (XLPE) / EPR |
Shielding Coverage Type | Aluminum Mylar Foil with Drain Wire / Braided Mesh | Unshielded or Heavy Metallic Braid |
Operating Temperature Range | -20°C to +75°C | -40°C to +90°C (Specialty up to +105°C) |
Standard Compliance | UL 13, UL 444, NEC Class 2/3 | IEC 60502-1, UL 1277, UL 44 |

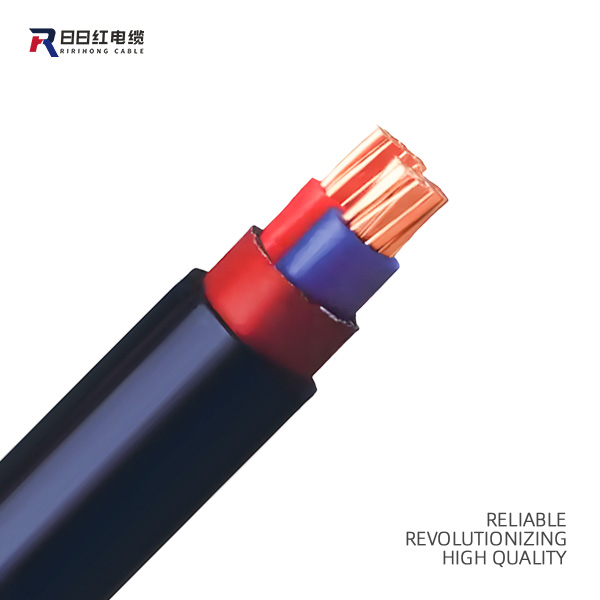

The structural integrity of a low voltage cable relies on a multi-layer composite assembly consisting of fine-stranded copper conductors, precise dielectric insulation, metallic or foil shielding, and a durable protective jacket.
From an electrical engineering standpoint, the conductor forms the physical core of any low voltage cable assembly. High-purity, soft-annealed copper is the primary metal utilized due to its low volume resistivity (1.724 x 10^-8 Ohm-meter at 20°C) and superior fatigue resistance. Depending on the installation flexibility requirement, conductors are manufactured either as solid cores or multi-strand concentric/bunch configurations. Fine multi-strand constructions are essential for applications subject to continuous movement, machinery vibration, or tight radius pulling inside complex control panels.
Surrounding the central conductor is the dielectric insulation layer, which maintains physical isolation between conductors and prevents short-circuit faults. Typical thermoplastic materials include Polyvinyl Chloride (PVC) and High-Density Polyethylene (HDPE), while thermosetting materials such as Cross-Linked Polyethylene (XLPE) are deployed for elevated thermal ratings and superior mechanical toughness. To mitigate electromagnetic interference (EMI) generated by adjacent variable frequency drives (VFDs) or heavy switchgear, cables often incorporate an overall or individual pair shield consisting of aluminum-laminated foil tape backed by tinned copper drain wire or a high-density tinned copper wire braid.
The outermost layer is the protective jacket, engineered to withstand aggressive industrial environments. Jacketing formulations utilize specialty PVC, Polyurethane (PUR), or Thermoplastic Elastomers (TPE) depending on whether the installation demands resistance to aliphatic hydrocarbons, continuous UV radiation, flame propagation, or extreme mechanical tearing. When selecting industrial-grade low voltage wiring, engineers verify that conductor stranding, insulation wall thickness, and outer jacket materials match the mechanical stress and chemical exposure of the installation site.
Cable Layer | Standard Material | Mechanical / Electrical Purpose |
Center Conductor | Class 2 Rigid or Class 5 Flexible Annealed Copper | Provides high electrical conductivity and physical flexibility |
Primary Insulation | XLPE (Cross-linked Polyethylene) or Flame-Retardant PVC | Offers high dielectric strength and prevents phase-to-phase shorts |
Cable Filler & Binder | Polypropylene Fibers / Non-Woven Tape | Maintains round cable profile and stabilizes internal geometry |
Electromagnetic Shield | Aluminum/Polyester Foil + Tinned Copper Braid | Attenuates high-frequency signal noise and prevents crosstalk |
Outer Protective Sheath | Low-Smoke Zero-Halogen (LSZH) or Heavy-Duty PUR | Shields internal elements against moisture, oil, UV, and abrasion |
Low voltage cables feature thinner dielectric insulation walls, compact overall diameters, and flexible conductor profiles optimized for currents under 1000V, whereas high voltage cables require thick semiconductor layers, metallic screening, and heavy insulation to manage intense dielectric stress.
The distinction between low voltage and high voltage cabling is rooted in fundamental electromagnetic field theory. In high voltage cables operating above 35kV, electric field strength (E-field) around the center conductor reaches critical levels, requiring advanced stress-control measures. High voltage cables must incorporate inner and outer semiconducting tape or extruded layers to smooth out localized electric field concentrations, along with continuous metallic sheaths (lead or corrugated aluminum) to contain the field and carry high fault currents to ground safely.
Conversely, low voltage cables operate under significantly reduced dielectric stress, eliminating the need for complex semiconducting stress control screens. Consequently, the primary insulation thickness of a 600V or 1000V Low Voltage Cable is drastically reduced compared to medium or high voltage variants. This structural difference yields a lighter, more flexible cable that exhibits a far smaller minimum bending radius, simplifying installation within tight raceways, cable trays, and terminal junction boxes.
From an operational standpoint, system safety and clearance requirements differ drastically between these two cable classes. High voltage cable terminations demand specialized stress cones, long creepage distance insulators, and strict physical isolation distances to prevent phase-to-ground flashover events. Low voltage cabling relies on standard terminal blocks, crimp lugs, or pluggable connectors with basic touch-safe insulation barriers, vastly reducing installation complexity and equipment footprint.
Comparison Feature | Low Voltage Cabling (<= 1kV) | High Voltage Cabling (> 35kV) |
Electric Field Stress | Low; no stress-control layers required | High; requires inner and outer semiconductor screens |
Insulation Wall Thickness | Nominal (typically 0.6mm to 2.0mm) | Heavy (typically 8.0mm to 30.0mm or more) |
Cable Flexibility | High; small bending radius (typically 4x-8x outer diameter) | Low; large bending radius (typically 12x-20x outer diameter) |
Jointing and Termination | Simple crimping, screwing, or terminal strip landing | Complex multi-layer stress cone kits and thermal shrinking |
Safety Clearance Requirement | Minimal clearance needed; compact ducting | Strict phase-to-phase and phase-to-ground isolation |
Low voltage wiring is deployed extensively across industrial plant automation, building control networks, power distribution panels, renewable energy arrays, and security infrastructure.
In modern commercial and industrial facilities, low voltage wiring serves as the primary backbone for operational intelligence and localized power distribution. System designers categorize low voltage installations based on function, signal integrity demands, and environmental exposure levels.
The principal applications of low voltage systems in industrial environments can be structured into four main operational categories:
Industrial Automation and Process Control: Programmable Logic Controllers (PLCs), distributed control systems (DCS), input/output (I/O) junction blocks, solenoid valves, and variable speed drives rely on flexible, shielded low voltage control cabling to execute precise automated operations.
Building Management and HVAC Control Systems: Commercial structures utilize low voltage cabling networks to connect thermistors, damper actuators, air handling units, and digital thermostats back to central automation servers to optimize energy consumption.
Security, Fire Alarm, and Access Infrastructure: Life safety networks require low voltage, fire-rated plenum cabling to drive smoke detectors, emergency notification strobes, magnetic door locks, and IP surveillance camera installations without interruption during thermal emergencies.
Renewable Energy and Energy Storage Systems (BESS): Solar photovoltaic generation plants and battery energy storage facilities utilize specialized DC Low Voltage Cable variants designed for elevated DC voltage levels (1000V DC to 1500V DC) to interlink battery modules, combiner boxes, and central inverters.
Application Sector | Typical Operating Voltage | Primary Cable Type Used | Environmental Exposure Challenge |
Factory Process Automation | 24V DC / 110V AC | Shielded Multi-Core Control Cable | Industrial oils, dynamic flex, EMI |
Building Access & Security | 12V DC / 24V AC | Plenum-Rated Twisted Pair Cable | Strict indoor fire/flame propagation |
Solar PV Array Cabling | 1000V DC - 1500V DC | Cross-linked PV Wire (UL 4703) | Intense UV radiation, direct burial |
Variable Frequency Drive (VFD) Feeds | 480V AC / 600V AC | XLPE Insulated Heavy Shielded VFD Cable | Severe high-frequency voltage spikes |
Power-over-Ethernet (PoE) Networks | 48V DC - 57V DC | Category 6A / Category 8 Shielded | Thermal buildup within tight bundle bundles |
Proper low voltage cable installation requires strict compliance with minimum bend radius rules, correct conduit fill ratios, careful pull tension control, and routine insulation resistance testing.
To ensure long-term operational reliability and prevent early cable failure, field engineers and electrical technicians must strictly follow standardized installation protocols. Mechanical stress applied during cable pulling is a leading cause of conductor damage and insulation degradation. Pulling tension must be monitored using mechanical tension limiters, and the cable's specified minimum bending radius—typically 4 to 8 times the outer diameter for unarmored cables and 12 times for armored variants—must never be compromised during routing through cable trays or conduit elbows.
Conduit fill factors must strictly comply with national standards (e.g., NEC Chapter 9 requirements), limiting maximum fill to 40% for three or more cables within a single raceway. Overcrowding raceways impedes heat dissipation, causing elevated internal operating temperatures that accelerate insulation aging and require ampacity derating. Furthermore, when laying low voltage signal cables adjacent to heavy high-voltage power feeds, engineers must maintain a minimum physical separation distance (typically 300mm to 500mm) or install grounded metallic dividers inside the cable tray to eliminate inductive noise coupling.
System Maintenance Guidelines (Preventative Maintenance Protocol):
To maintain system integrity throughout the operating lifecycle, maintenance engineering teams should implement the following routine protocol:
Insulation Resistance (Megger) Testing: Perform annual 500V DC insulation testing between phase conductors and ground. Insulation resistance values should consistently exceed 100 Megohms; a sudden drop indicates moisture ingress or physical sheath damage.
Thermal Imaging Inspection: Conduct infrared thermographic scans on terminal blocks, crimp lugs, and cabinet entry glands during peak load conditions. Hot spots typically indicate loose terminal torque settings or severe localized conductor oxidation.
Shield Grounding Integrity Verification: Ensure that signal cable shields are grounded at only one designated point (typically at the PLC cabinet side) to eliminate ground loop currents. Check ground connection resistance to ensure it remains below 1 Ohm.
