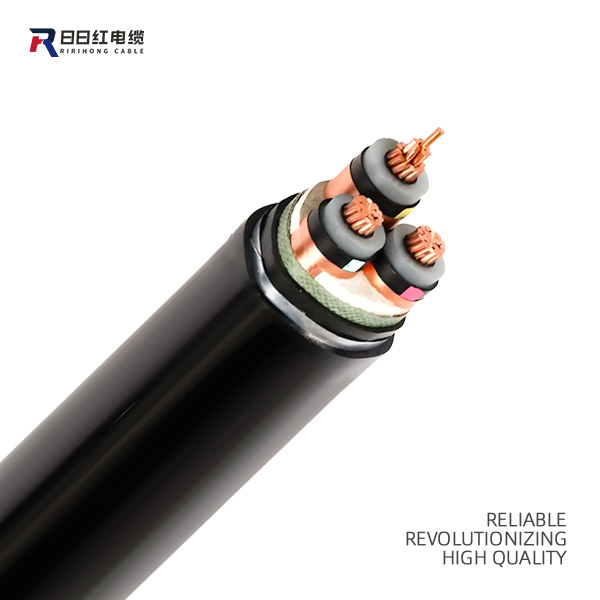

Medium Voltage cable: Design & Construction

Understanding Medium Voltage Cable Fundamentals and Voltage Ratings

Medium Voltage Cable structures are engineered to distribute electrical power safely within the voltage spectrum spanning from 1 kV up to 35 kV, providing a critical interface between high-voltage transmission lines and low-voltage end-use facilities.

In electrical engineering standards established by IEEE, ICEA, and IEC, the classification of Medium Voltage Cable systems covers voltage thresholds higher than low-voltage utilization systems yet lower than bulk transmission voltages. In practical utility and industrial infrastructure, standard voltage classes include 5 kV, 8 kV, 15 kV, 25 kV, and 35 kV. The primary purpose of a Medium Voltage Cable is to maintain complete containment of high radial electrical stresses within its dielectric structure while preventing localized electrical discharge, moisture ingress, and environmental degradation.

Proper voltage classification directly dictates the required insulation wall thickness, shielding parameters, and testing protocols for every manufactured Medium Voltage Cable. Standard industry specifications require 100% or 133% insulation levels based on system ground fault clearing times. A 100% insulation level applies to grounded systems where clearing occurs within 1 minute, whereas a 133% level provides additional dielectric thickness for ungrounded or delayed-clearing networks. Selecting the correct rating ensures that continuous phase-to-ground operating voltage, combined with switching surges and lightning impulses, remains well below the dielectric breakdown threshold of the Medium Voltage Cable assembly.

Beyond continuous voltage performance, Medium Voltage Cable design must account for dynamic short-circuit thermal capacity and emergency overload thresholds. During a line-to-ground fault, the cable layers must withstand extreme thermal transients without softening the primary dielectric material or deforming the outer protective jacket. Furthermore, modern electrical distribution networks increasingly require robust Medium Voltage Cable solutions for utility grids that meet rigorous partial discharge limits, ensuring partial discharge activity stays below specified picocoulomb levels during factory test procedures.

Core Conductor Materials and Engineering Standards

The central conductor of a Medium Voltage Cable utilizes high-purity copper or electrical grade aluminum to carry rated continuous current while minimizing electrical resistance and internal thermal accumulation.

Conductor selection serves as the physical foundation of Medium Voltage Cable design. Oxygen-free copper offers superior electrical conductivity, higher tensile strength, and lower thermal expansion coefficients compared to aluminum. Consequently, copper conductors are preferred in compact conduit layouts, heavy industrial environments, and high-vibration applications. Conversely, aluminum conductors—typically utility grade 1350-H19 or 8000 series alloys—deliver substantial weight savings and cost efficiencies, making them the industry standard for extensive underground direct-burial utility distribution networks using Medium Voltage Cable configurations.

To optimize the profile and electrical performance of the Medium Voltage Cable, bare conductors are rarely used as solid units in larger cross-sections. Instead, conductors are stranded in concentric, compressed, or compact round configurations. Compact stranding reduces the overall diameter of the conductor bundle by filling inter-strand voids, which reduces overall Medium Voltage Cable dimensions, lowers material usage for outer extruded layers, and presents a smoother outer boundary. Smooth conductor boundaries decrease localized electric field concentrations, thereby enhancing overall dielectric stability.

When evaluating conductor performance, design engineers must factor in alternating current resistance, skin effect, and proximity effect. As alternating current flows through a large cross-section Medium Voltage Cable, current density tends to concentrate near the conductor outer surface, increasing effective AC resistance. To counteract these losses in large conductors, specialized strand layouts or coated copper strands are utilized. Furthermore, water-blocking compounds or swellable powders can be integrated directly inside the conductor strands to block longitudinal moisture migration along the core of the Medium Voltage Cable if outer layers suffer mechanical damage.

The Triple Extrusion Process: Conductor Shield, Insulation, and Insulation Shield

The core insulating system of a high-performance Medium Voltage Cable relies on a true triple-extrusion process that simultaneously bonds the conductor shield, primary insulation, and insulation shield into a unified, void-free dielectric structure.

High electrical stress gradient management is the core challenge in Medium Voltage Cable design. A bare conductor exhibits surface micro-irregularities that create localized electric field amplification. If left unmitigated, these electrical high-stress points induce localized ionization, breaking down adjacent insulation. To resolve this, a thermosetting semi-conducting conductor shield is extruded directly over the conductor. This layer fills strand gaps, presenting a perfectly smooth, equipotential cylindrical boundary to the primary dielectric layer of the Medium Voltage Cable.

Directly over the conductor shield lies the primary insulating layer, followed immediately by an outer semi-conducting insulation shield. Modern manufacturing executes this via a single-pass triple extrusion head inside a True Dry Cure Continuous Vulcanization (CCV) line. By extruding all three layers simultaneously, the manufacturing process prevents airborne contamination, moisture inclusion, and micro-void formation between layers. Any micro-void or contaminant larger than a few micrometers can become a focal point for partial discharge, initiating irreversible treeing breakdown inside the Medium Voltage Cable insulation during service.

The outer semi-conducting insulation shield provides a continuous cylindrical grounded surface over the insulation, maintaining purely radial electrical stress distribution throughout the Medium Voltage Cable cross-section. This layer must be either fully bonded or strippable based on system termination preferences. Strip force parameters are strictly governed by industry standards; a strippable shield must peel away cleanly during splicing without tearing or leaving semi-conductive residue on the primary insulation surface. Achieving uniform thickness across all three extruded layers requires real-time X-ray monitoring during the high-pressure CCV process.

• Strippable Shield Stripping Torque Considerations: When terminating or splicing a Medium Voltage Cable in field environments, maintaining precise temperature control during shield removal is vital. Cold ambient temperatures increase peel resistance of strippable semi-conductive shields, raising the risk of scoring the underlying dielectric insulation with scoring tools. Field technicians must store cables in warmed enclosures prior to prep, use designated depth-controlled scoring tools, and verify zero carbon residue remains on the primary insulation surface before applying termination kits.

Dielectric Materials: XLPE versus EPR Insulation Performance

Selecting between Cross-Linked Polyethylene (XLPE) and Ethylene Propylene Rubber (EPR) insulation dictates the thermal operational window, physical flexibility, and dielectric loss profile of a Medium Voltage Cable.

Cross-Linked Polyethylene (XLPE) represents the most widely specified insulation material for modern Medium Voltage Cable designs. Standard polyethylene consists of linear polymer chains that soften at elevated temperatures. Through chemical cross-linking—typically utilizing organic peroxides under high temperature and pressure—these polymer chains form a robust three-dimensional molecular network. This cross-linked network elevates the continuous conductor operating temperature capability of the Medium Voltage Cable to 90°C, with emergency overload ratings up to 130°C and short-circuit withstand limits reaching 250°C. Tree-Retardant XLPE (TR-XLPE) formulations add organic additives that neutralize water tree initiation, vastly extending cable operational life in wet environments.

Ethylene Propylene Rubber (EPR) provides an alternative dielectric solution characterized by exceptional flexibility, chemical stability, and low thermal expansion coefficients. Because EPR is an elastomeric compound, an EPR-insulated Medium Voltage Cable bends much more easily than an equivalent XLPE cable, simplifying installation inside congested electrical vaults, tight raceways, and industrial switchgear enclosures. EPR exhibits inherent resistance to electrochemical water treeing, making it highly durable in persistently saturated soils without requiring specialized tree-retardant chemical modifiers.

However, dielectric losses differ markedly between these two insulation materials. XLPE features an extremely low dissipation factor (tan δ) and low dielectric constant, minimizing capacitive charging currents and active power losses along long distribution circuits. EPR displays higher dielectric losses and elevated charging currents relative to XLPE. Therefore, long utility circuits and high-voltage feeder networks strongly favor TR-XLPE Medium Voltage Cable configurations to minimize operational power losses, while industrial facilities and tight conduit layouts often prioritize EPR for its mechanical handling advantages.

Metallic Shielding and Concentric Neutral Configurations

The metallic shield surrounding the insulation system of a Medium Voltage Cable confines the electrostatic field within the cable package, provides a path for return current, and safely carries earth fault currents during line-to-ground short circuits.

Without an adequate metallic shield, a Medium Voltage Cable presents serious safety risks. Unshielded medium-voltage conductors generate external electric fields that ionize surrounding air, leading to surface tracking, human shock hazards, and premature insulation degradation. The metallic shield establishes an equipotential boundary held at ground potential. Industry specifications define several structural configurations for metallic shields, including bare copper tape overlays, helically applied flat copper ribbons, longitudinally corrugated copper sheaths, and concentric neutral wire layers.

Concentric neutral designs are uniquely engineered for single-phase and three-phase underground residential distribution (URD) systems. In a concentric neutral Medium Voltage Cable, a series of bare or tin-coated solid copper wires are helically wrapped directly over the semi-conducting insulation shield. Full neutral configurations utilize copper wire cross-sections equal to the main conductor cross-section, while reduced neutral designs utilize one-third or one-sixth sizing. In industrial facilities using 3-conductor systems, a helically applied copper tape shield—typically 5 mils thick with a nominal 10% to 20% overlap—provides electrostatic containment, accompanied by dedicated bare grounding conductors placed within the cable interstice spaces.

Dimensioning the metallic shield requires careful calculation of prospective system line-to-ground fault levels and clearing times. If a high-magnitude ground fault occurs, the thin metallic shield must carry the fault energy to the system ground matrix without melting, burning through the semi-conducting shield, or thermally degrading the underlying primary insulation. Modern electrical engineers specify high-grade durable Medium Voltage Cable shielding structures to handle high fault levels in industrial power grids and generation sub-stations without structural failure.

Protective Sheathing and External Armor Constructions

The outer jacket and armoring layers of a Medium Voltage Cable protect the inner dielectric core from mechanical impact, moisture penetration, chemical attack, and ultraviolet exposure.

The choice of outer jacket formulation establishes the environmental resistance profile of the finished Medium Voltage Cable. Polyvinyl Chloride (PVC) jackets provide economical flame retardancy and resistance to oils, making them popular in industrial tray installations. Polyethylene (PE) compounds—including Linear Low-Density Polyethylene (LLDPE) and High-Density Polyethylene (HDPE)—deliver superior abrasion resistance, moisture impermeability, and toughness required for direct-burial and duct pull operations. Chlorinated Polyethylene (CPE) and Low Smoke Zero Halogen (LSZH) jacketing options are specified where flame resistance, chemical exposure, or strict toxic gas emission limits are mandatory, such as in transit tunnels and offshore platforms.

In heavy industrial facilities, petrochemical refineries, and mining sites, polymeric jackets alone are insufficient against physical impacts, crushing forces, and rodent damage. These demanding environments mandate armored Medium Voltage Cable constructions. Aluminum Interlocked Armor (AIA) consists of a helically wrapped, interlocking metallic strip that yields outstanding mechanical protection while preserving bend flexibility. For complete liquid-tight and gas-tight sealing in hazardous locations, Continuously Corrugated Welded (CCW) aluminum sheaths are applied. Steel Wire Armor (SWA) utilizes a dense layer of galvanized steel wires helically wound over an inner bedded jacket, providing extreme tensile strength for vertical shaft drops, submarine routes, and high-traction direct-burial installations.

• Subsea and Direct-Burial Water Ingress Prevention: When installing a direct-burial or duct-based Medium Voltage Cable in high water table locations, radial moisture migration through outer polymeric jackets can accelerate water treeing over decade-long duty cycles. To combat this, advanced cable designs feature swellable water-blocking tapes wrapped under the outer metallic screen, combined with a continuous aluminum-polymer laminated tape barrier bonded directly to an HDPE outer sheath. This creates an impermeable hermetic barrier against water ingress.

Technical Specifications and Structural Parameters

The electrical capacity, structural dimensions, and insulation parameters of Medium Voltage Cable systems are strictly governed by internationally recognized engineering standards such as ICEA S-93-639, IEC 60502-2, and IEEE 1202.

Standardized manufacturing matrices ensure that Medium Voltage Cable products meet rigorous electrical, physical, and thermal baseline parameters. Conductor cross-sectional areas are designated in AWG/kcmil units in North America and millimeter squared (mm²) in IEC regions. Insulation thickness selection is tied directly to system operating voltage class and grounding architecture, dictating final overall cable weights, minimum bend radii, and maximum pulling tension parameters during field installation.

Engineers must calculate cable ampacity using standardized thermal models (such as Neher-McGrath methodologies) that factor in conductor resistance, dielectric loss, shield loss, thermal resistivity of surrounding soil or duct banks, and ambient temperature conditions. Implementing standardized engineered Medium Voltage Cable designs allows facilities to maximize load capability while keeping conductor hot-spot temperatures safely within the 90°C continuous duty thermal threshold.

Key Application Scenarios and Installation Environments

Medium Voltage Cable assemblies are deployed across a vast spectrum of critical infrastructure, spanning municipal distribution grids, industrial plant power loops, offshore wind collection systems, and underground mining networks.

1. Utility Underground Residential and Commercial Distribution (URD)

   Municipal power grids rely heavily on single-phase and three-phase Medium Voltage Cable configurations buried directly in underground trenches or pulled through subterranean concrete duct banks. These systems utilize TR-XLPE insulated cables with concentric neutrals and rugged HDPE jackets. This construction withstands soil compaction, moisture accumulation, and seasonal freeze-thaw cycles while delivering reliable power to transformer pads.

2. Industrial Manufacturing and Petrochemical Facilities

   Heavy industrial complexes demand continuous power distribution between main substations, motor control centers, and large medium-voltage motor drives. For these applications, three-conductor Medium Voltage Cable designs equipped with copper tape shields and Continuously Corrugated Welded (CCW) aluminum armor or Aluminum Interlocked Armor (AIA) are preferred. The armor layer provides flame retardancy, impact resistance, and a gas-tight seal against corrosive hydrocarbon vapors.

3. Renewable Energy Collector Networks (Solar and Wind Plants)

   Utility-scale solar farms and wind turbine arrays utilize extensive 35 kV Medium Voltage Cable feeder circuits to aggregate power generated by inverter stations and route it to the main step-up substation. These outdoor collection circuits undergo high cyclic loading, thermal variations, and exposure to challenging soil environments, requiring water-blocked conductors, low-loss TR-XLPE dielectric layers, and tough outer polyethylene jackets.

4. Mining, Tunneling, and Mobile Equipment Operations

   Underground mining operations subject power cables to constant relocation, extreme bending stress, and severe mechanical impacts. Specialist extra-flexible Medium Voltage Cable variants employ high-strand tinned copper conductors, heavy-duty EPR rubber insulation, and reinforced neoprene or polyurethane outer sheaths. Integrated grounding conductors and ground check wires continuously verify circuit safety during dynamic mining equipment operation.

Strategic Summary of Medium Voltage Cable Engineering

Selecting and installing the ideal Medium Voltage Cable requires a holistic engineering approach that balances dielectric insulation integrity, conductor optimization, metallic shielding capability, and protective mechanical armor.

The long-term reliability of a medium-voltage electrical power grid depends directly on every individual layer within the Medium Voltage Cable structure. Selecting high-purity copper or aluminum compact conductors establishes low internal ohmic heating. Applying a triple-extrusion process ensures a void-free interface across the conductor shield, primary dielectric insulation, and insulation shield, eliminating local stress points and preventing partial discharge. Choosing between TR-XLPE and EPR allows system designers to balance low-loss electrical efficiency against enhanced mechanical flexibility and inherent moisture resistance.

Furthermore, correct dimensioning of the metallic tape or concentric neutral shield provides vital fault-current capacity and electrostatic containment, while engineered outer jackets and metallic armor options safeguard the internal dielectric core against physical abuse, chemical attack, and water ingress. By aligning detailed system short-circuit studies, environmental conditions, and installation parameters with modern manufacturing standards, electrical power engineers can specify robust Medium Voltage Cable solutions built for decades of reliable, uninterrupted power delivery.
