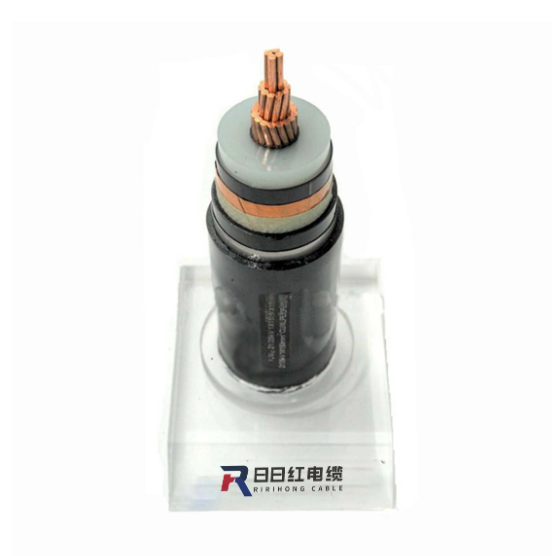

The 35kV electrical system serves as a critical bridge. It connects main utility substations directly to primary site networks. Managing power distribution at this threshold requires exacting engineering precision. Specification errors at this high voltage carry immense stakes. A minor dielectric failure can easily cause catastrophic facility downtime. Such failures also trigger severe compliance and safety liabilities. Modern industrial facilities rely heavily on uninterrupted power flows. Securing long-term grid reliability starts by choosing the right materials. We built this comprehensive guide to help you navigate these complex choices. We will provide a robust technical and commercial framework. You will learn how to properly evaluate 35kV XLPE insulation configurations. Our goal is to ensure reliable performance. We also aim to facilitate cost-efficient procurement for your next major installation.
Insulation Integrity: Tree-Retardant XLPE (TR-XLPE) is increasingly the baseline over standard XLPE for underground distribution due to superior resistance to dielectric breakdown.
Thermal Ratings: Specifying UL Type MV-105 guarantees safe continuous operation at 105°C, providing critical thermal headroom for industrial loads.
Component Synergies: The choice between Aluminum/Copper conductors and LLDPE/PVC jackets dictates not just cost, but installation viability and environmental resilience.
Procurement Realities: Minimizing project risk requires aligning technical specs with distributor inventory realities, focusing on lead times and precise pulling tension data.
Primary underground networks demand robust electrical performance from every component. A typical 35kV cable operates under continuous, intense electrical stress. Engineers must account for severe voltage spikes. They must also plan for heavy daily load cycling. Environmental hazards threaten the underground system constantly. Establishing a solid engineering baseline ensures the system survives these daily extremes.
Extruded solid dielectrics dominate modern high-voltage applications. We often compare XLPE and Ethylene Propylene Rubber (EPR) in this tier. EPR offers excellent flexibility. It tracks very well in tight underground spaces. However, XLPE provides superior overall dielectric properties. XLPE boasts significantly lower dielectric losses than its rubber counterparts. It also delivers higher physical toughness against mechanical impacts. This inherent toughness makes XLPE highly desirable for long-distance utility runs.
Engineers must evaluate several operational parameters when selecting materials:
Ampacity Requirements: Calculate the maximum continuous current the circuit will carry safely.
Short Circuit Capacity: Ensure the shield and conductor can handle fault currents without melting.
Voltage Drop: Analyze long runs to prevent unacceptable voltage sagging at the load end.
Thermal Ratings: Specify UL Type MV-105 to guarantee safe continuous operation at 105°C.
Performance Characteristic | Standard XLPE | Ethylene Propylene Rubber (EPR) |
|---|---|---|
Dielectric Losses | Very Low | Moderate |
Physical Toughness | High | Moderate |
Flexibility | Moderate | High |
Moisture Resistance | Good (Excellent if TR-XLPE) | Very Good |
You need to establish clear success criteria for your project. A highly reliable medium voltage cable for power distribution balances upfront material costs against installation labor. Achieving a 30-year expected lifecycle remains the ultimate design goal. You must carefully vet manufacturer testing data. Ensure products meet standard ICEA S-94-649 and AEIC CS8 specifications. Careful evaluation early in the project prevents premature system degradation.
Best practices suggest performing comprehensive factory acceptance testing. Require partial discharge testing on every reel before shipping. This prevents installing microscopic manufacturing defects into your critical infrastructure. Common mistakes include ignoring minimum bending radii during installation. Exceeding pulling tension limits also routinely damages the delicate insulation shield.
Water treeing represents the primary threat to underground cable longevity. Microscopic moisture droplets penetrate the polymer matrix over time. Localized electrical stress causes these droplets to form tree-like branch structures. These water trees grow slowly over months or years. Eventually, water trees convert into destructive electrical trees. This transition leads directly to sudden, catastrophic dielectric breakdown. You must fully understand this degradation mechanism to specify insulation correctly.
Standard XLPE power cable provides a highly economical solution. It works perfectly in strictly dry environments. Highly controlled above-ground conduit systems suit this standard insulation well. The lower upfront cost appeals strongly to budget-conscious facility managers. Standard XLPE possesses excellent thermal characteristics. It handles 105°C continuous operating temperatures easily. However, standard XLPE lacks robust internal moisture defenses. We strictly advise against using it for wet, underground applications.
Tree-Retardant XLPE (TR-XLPE) serves as a necessary, practical upgrade. Direct burial applications absolutely demand this enhanced material composition. Manufacturers blend specific chemical additives into the polyethylene base. These additives capture moisture and prevent tree structures from growing. TR-XLPE chemistry slows down water tree growth significantly. Underground conduit systems prone to seasonal moisture ingress also require it. Many North American utilities now mandate TR-XLPE as their default specification.
We recommend a structured decision framework for choosing between the two options. Calculating the long-term return requires modeling future fault replacements.
Assess the installation environment to determine actual moisture exposure risks.
Calculate the initial procurement premium required to upgrade to TR-XLPE materials.
Estimate the heavy labor and material costs of a single fault repair underground.
Factor in the operational financial losses caused by an unplanned power outage.
Compare the initial TR-XLPE premium against the total modeled fault expense.
TR-XLPE prevents massive emergency repair expenses down the road. The initial investment easily justifies itself in virtually all wet environments. A common mistake is assuming conduits remain dry forever. Underground conduits always accumulate water through condensation or seal failures eventually. Designing for a wet environment from day one eliminates this severe vulnerability.
Conductor metal strictly dictates the physical and electrical footprint of your system. Aluminum dominates modern utility-scale distribution cable installations today. It offers an unbeatable cost-to-weight advantage over traditional copper. Lighter cables require much less pulling tension during installation. They also demand fewer expensive support structures in overhead tray applications. Aluminum significantly reduces worker fatigue during heavy industrial pulls.
The main trade-off involves larger overall diameter requirements. Aluminum has noticeably lower electrical conductivity than copper. You need a larger physical conductor to carry the exact same ampacity. Engineers must size conduits appropriately to accommodate the bulkier aluminum conductors. Failing to properly size conduits leads to jammed pulls and damaged jackets.
Certain environments strictly demand the use of copper conductors. Space constraints often dictate minimizing overall cable diameters. Copper provides vastly superior ampacity per cross-sectional area. Specific industrial cable runs rely on copper to maximize power delivery. Upgrading heavy equipment in existing, crowded underground ducts often forces this exact choice.
You must acknowledge the steep initial cost premium of copper. Copper commodity pricing fluctuates heavily and drives up project budgets. However, the performance benefits in tight spaces easily justify the expense. Copper also resists oxidation and corrosion better at termination points. This ensures more reliable, maintenance-free connections over the system's lifespan.
The outer jacket serves as the ultimate first line of defense. Linear Low-Density Polyethylene (LLDPE) offers superior overall moisture resistance. It provides excellent physical toughness during the rigorous installation process. An LLDPE jacket shields the underlying MV cable core from severe abrasions. It survives harsh backfill materials much better than standard Polyvinyl Chloride (PVC).
We evaluate jacket materials based on several critical field factors:
Moisture Permeability: LLDPE severely restricts dangerous water vapor transmission.
Mechanical Durability: It vigorously resists tearing and scoring when pulled through rough conduits.
Temperature Tolerance: LLDPE remains highly flexible even in freezing outdoor conditions.
Chemical Resistance: It withstands prolonged exposure to corrosive soil alkalis and industrial acids.
LLDPE does lack inherent flame retardancy. This chemical reality makes it ideal strictly for outdoor, underground use. Indoor applications typically require flame-retardant PVC or LSZH (Low Smoke Zero Halogen) jackets. Choosing the wrong jacket material rapidly compromises the entire cable assembly.
Another common mistake involves ignoring coefficient of friction during installation planning. LLDPE jackets have different friction characteristics compared to PVC. You must select compatible pulling lubricants to avoid damaging the jacket. Check manufacturer specifications carefully before applying any lubricant to an LLDPE jacket.
Evaluating high-voltage infrastructure requires balancing upfront specifications with harsh long-term realities. Material choices made today will directly impact facility operations for decades. We have thoroughly explored the critical aspects of 35kV system designs. Understanding dielectric stress and moisture ingress protects your investment.
Keep these action-oriented steps in mind for your next major project:
Specify TR-XLPE insulation for any underground or moisture-prone installation environment.
Match your conductor metal carefully to your physical space constraints and exact ampacity needs.
Select tough LLDPE jackets for superior mechanical protection in direct burial scenarios.
Review pulling tension data thoroughly before finalizing heavy aluminum or copper purchases.
Verify that all selected materials comply with stringent ICEA and AEIC testing standards.
A: TR-XLPE contains specialized chemical additives. These additives inhibit the formation and growth of water trees in the insulation matrix. This vastly extends the operational life of the cable in wet, underground environments. Standard XLPE lacks these additives and degrades much faster when continuously exposed to moisture.
A: Generally, no. LLDPE provides excellent moisture and abrasion resistance for outdoor use. However, it lacks the critical flame retardancy required for indoor applications. Building codes typically require PVC or LSZH jackets indoors. These materials prevent rapid fire propagation and dangerous toxic smoke generation.
A: Aluminum is significantly lighter and more cost-effective than copper. This lower weight drastically reduces pulling tension during difficult underground installations. It also decreases the structural load on tray support systems. While it requires a larger diameter for the same ampacity, the massive cost savings make it ideal.
A: Exceeding the minimum bending radius damages the internal components permanently. It causes the metallic shield to buckle or snap. It can also create microscopic voids in the XLPE insulation. These voids concentrate electrical stress, leading directly to partial discharge and eventual catastrophic dielectric failure.
A: No, conduits do not prevent water treeing over the long term. Conduits installed underground inevitably fill with water. Condensation, groundwater seepage, and degraded seals guarantee moisture ingress. Engineers must always treat underground conduits as wet locations and specify TR-XLPE insulation accordingly.
