Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms
RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency
Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.

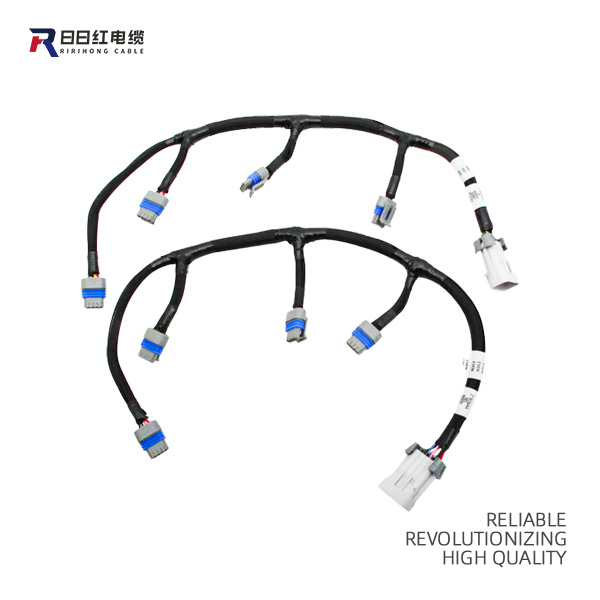

| Signal Transmission Wiring Harness — Complete Spec Sheet | ||||||||
| AWG Size | Conductor Area (mm²) | Voltage Rating | Current Rating (Ampacity) | Insulation Type | Conductor Material | Core Type | Typical No. of Conductors | Notes / Use Case |
| 30 AWG | 0.05 mm² | 30 – 60V | 0.5 – 1.0 A | PVC / FEP / TPE | Tinned Copper | Stranded (7x finer) | 2 – 50 | Short-range data, very compact circuits |
| 28 AWG | 0.08 mm² | 30 – 100V | 0.8 – 1.4 A | PVC / TPE / XLPE | Tinned Copper | Stranded | 2 – 40 | USB, SPI, UART, signal wires in PCBs |
| 26 AWG | 0.13 mm² | 100 – 300V | 1.0 – 2.2 A | PVC / TPE / FEP | Tinned Copper | Stranded | 2 – 50+ | Data harness, CAN/LIN bus, CAT5 |
| 24 AWG | 0.20 mm² | 100 – 300V | 2.0 – 3.5 A | PVC / PE / XLPE | Bare/Tinned Copper | Stranded | 2 – 60+ | RS-232, RS-485, Ethernet (CAT5e) |
| 22 AWG | 0.34 mm² | 300V | 3.5 – 5.5 A | PVC / PE / FEP | Bare/Tinned Copper | Stranded / Solid | 2 – 60+ | Encoder/sensor cables, control lines |
| 20 AWG | 0.52 mm² | 300V | 5 – 8 A | PVC / XLPE / FEP | Bare/Tinned Copper | Stranded | 2 – 50+ | Servo feedback, signal + power combo |
| 18 AWG | 0.82 mm² | 300V – 600V | 7 – 12 A | PVC / TPE / FEP | Bare/Tinned Copper | Stranded | 2 – 40 | Industrial I/O, camera cables, RS-422 |
| 16 AWG | 1.3 mm² | 300V – 600V | 10 – 15 A | PVC / FEP / Silicone | Bare/Tinned Copper | Stranded | 2 – 30 | Signal + control (e.g., motor encoders) |
Automotive, ECU to sensor, CAN bus, infotainment
Industrial Automation, PLCs to sensors/actuators, HMI interfaces, encoder feedback lines
Aerospace/Avionics Flight computers, cockpit controls, acionics sensors
Medical Equipment, Patient monitoring, diagnostic devices, imaging systems
Home Appliances, data buses, control panels, etc
Renewable Energy, Data kubes frin sikar ubverters, sensors
Apply cable base on its insulation property
Avoid bends
Always de-energize the system before working on cables
Proper PPE duing operation
| Feature | Why It Matters |
| Shielded Twisted Pair (STP/FTP) | Minimizes noise and electromagnetic interference (EMI), essential for data lines |
| Low Capacitance Insulation | Maintains signal integrity over longer distances (especially analog/digital signals) |
| Color-Coded or Numbered Wires | Simplifies troubleshooting and prevents wiring errors |
| Compact & Lightweight | Important for space-constrained or weight-sensitive applications (like avionics) |
| Custom Connector Options | Ensures compatibility with signal interfaces (D-Sub, Molex, RJ45, etc.) |
| Flexible Jacket Materials | PVC, PUR, or Teflon help withstand repeated bending in dynamic environments |
