Wire Harness and Connectivity in Factory Automation

Views: 0     Author: Site Editor     Publish Time: 2026-09-12      Origin: Site

Fundamental Architecture of Industrial Wiring Harness Assemblies

An industrial Wiring Harness is an intricately structured system of insulated conductors, multi-core cables, shielding layers, terminals, and outer protective jacketing designed to stream electrical power and real-time sensor telemetry reliably under severe mechanical, thermal, and chemical stress.

The physical build of a heavy-duty Wiring Harness begins with bare or tinned fine-stranded copper conductors chosen for maximum conductivity and mechanical flexibility. Standard commercial wire assemblies rely on rigid stranding, whereas industrial grade cable structures utilize ultra-fine micro-strand configurations wrapped in specialized insulation such as Polypropylene, Fluorinated Ethylene Propylene, or Cross-linked Polyethylene. These dielectric insulation materials provide high dielectric strength, low capacitance, and exceptional resistance against voltage breakdown under continuous thermal cycling. Proper conductor insulation prevents internal short circuits while maintaining low signaling resistance across long runs between control cabinets and remote machine modules.

Surrounding the bundled conductors are engineered filler elements, binder tapes, and specialized shielding structures designed to hold the internal geometries stable during operation. Outer jacketing materials are selected based on environmental exposure: Polyurethane provides unmatched abrasion, tear, and oil resistance; Polyvinyl Chloride serves well in general-duty applications; and Thermoplastic Elastomers offer extraordinary performance in extreme sub-zero temperatures. In high-density automation, integrating custom industrial sensor connection wiring harness assemblies ensures that power delivery and signal telemetry operate concurrently within space-constrained machine frames without signal cross-talk or physical bundling degradation.

The termination points of a modern Wiring Harness utilize precision crimped contacts, gold-plated pin interfaces, and overmolded strain relief boots. Microstructural crimp analysis demonstrates that gas-tight cold welds created between the conductor strands and terminal barrels eliminate contact oxidation and minimize electrical resistance over time. Overmolding technology encapsulates the solder or crimp junctions within rigid or semi-rigid polymers, forming a unified moisture seal that prevents ingress of cutting fluids, machine coolants, and airborne dust particles into the electrical contact matrix.

Electrical and Physical Parameters of Harness Construction

Parameter

Specification Range

Testing Standard

Primary Engineering Function

Conductor Stranding

Class 5 or Class 6 fine copper

IEC 60228 / DIN VDE 0295

Ensures dynamic flex life and reduces internal mechanical stress

Insulation Resistance

Minimum 500 Mohm per kilometer

IEC 60502-1

Prevents signal leakage and cross-talk between adjacent cores

Dielectric Voltage Withstand

1500 V AC to 3000 V AC for 1 minute

UL 1581 / IEC 60332

Verifies dielectric barrier integrity under transient voltage spikes

Outer Jacket Tensile Strength

15 MPa to 35 MPa

ASTM D412

Provides mechanical resistance against abrasion, gouging, and tearing

Operating Temperature Range

-40 C to +105 C static; -25 C to +90 C flex

EN 50363

Maintains structural stability across thermal expansion cycles

Engineering Selection Matrix: When designing a custom Wiring Harness, clients frequently ask why we select specific jacketing materials over lower-cost alternatives. In European automotive lines, PUR jackets are universally preferred due to strict coolant resistance requirements, whereas North American food processing plants favor TPE jackets capable of enduring harsh chemical washdowns. Choosing the correct jacketing polymer upfront eliminates premature jacket cracking and costly unscheduled downtime.

Critical Connectivity Standards and Industrial Sensor Cable Interfaces

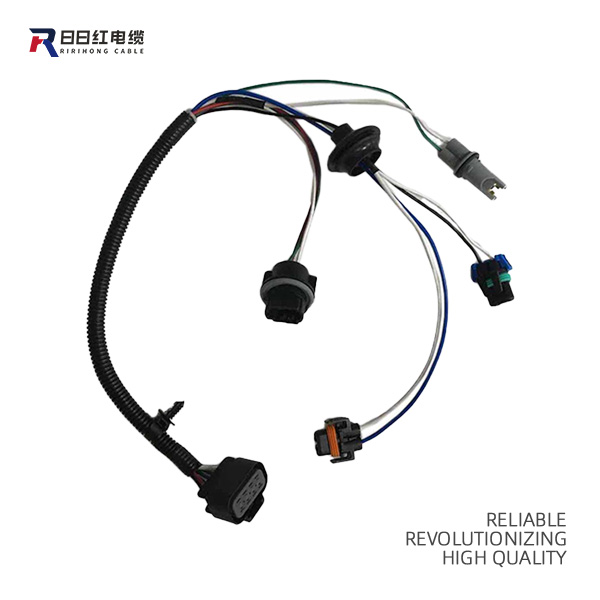

Standardized connector interfaces integrated into a sensor Wiring Harness establish leak-proof, vibration-resistant electrical joints that facilitate rapid device swapping, modular machine building, and deterministic fieldbus communications.

In automated production lines, field devices such as inductive proximity switches, photoelectric sensors, vision systems, and digital encoders rely on standard circular connector formats. The M8 and M12 thread-locking systems represent the global standard for sensor and actuator connectivity. M12 connectors feature keying options tailored to specific signal protocols: A-coded for standard sensor/actuator signals and DC power; B-coded for Fieldbus networks like Profibus; D-coded for 100 Mbps Industrial Ethernet; and X-coded for high-speed 10 Gbps Ethernet data transmission. Thread-locking mechanisms, coupled with internal O-rings and ratcheting anti-vibration couplings, ensure that electrical continuity remains intact despite continuous shock loads from automated tooling.

Beyond circular interfaces, rectangular heavy-duty connectors are widely utilized for modular control cabinets and robot base installations. These connectors house high-density insert modules that combine power conductors, coaxial signal lines, pneumatic lines, and optical fiber interfaces within a single IP65/IP67 aluminum housing. Precision-machined locking levers prevent inadvertent disconnects, while internal neoprene or silicone gaskets seal out fluids and metallic particulates common in machining facilities.

Integrating pre-tested, factory-overmolded M12 sensor cable harness connections into distributed I/O blocks allows machine builders to implement plug-and-produce topologies. Rather than running individual point-to-point discrete wires back to a central control cabinet, sensor signals are gathered locally at IP67 junction blocks and routed through a consolidated master cable assembly, reducing total cabinet wiring footprint and commissioning time.

Connector Interface Technical Comparison

Connector Family

Pin Configurations

Ingress Protection Rating

Rated Voltage / Current

Target Application

M8 Threaded

3, 4, 6, 8 Pole

IP67 / IP68

30V-60V / 1.5A-3A

Compact proximity sensors, pneumatic valves, mini-actuators

M12 A-Coded

3, 4, 5, 8, 12 Pole

IP67 / IP68 / IP69K

30V-250V / 2A-4A

Standard I/O block interconnects, analog sensor loops

M12 X-Coded

8 Pole (Cat6A)

IP67 / IP68

48V / 0.5A per pin

GigE Vision cameras, Industrial Ethernet, real-time control networks

Heavy-Duty Rectangular

6 to 108 Pole Modular

IP65 / IP67 / IP68

400V-690V / 10A-35A

Main power feeds, robot base connections, machine tool modules

Engineering Considerations for Dynamic Flexing and High-Vibration Robotics

Dynamic industrial applications require a flex-rated Wiring Harness specifically designed to endure millions of alternating bending and torsional cycles without conductor strand breakage or insulation deformation.

Static cable installations experience negligible mechanical stress after placement, but cables installed in continuous-flex drag chains or multi-axis articulated robot arms suffer from severe tensile, compressive, and shear forces. Standard stranded wires subjected to continuous bending quickly experience work-hardening, leading to conductor necking and catastrophic copper fracture. To counter this, a continuous-flex Wiring Harness employs extra-fine copper stranding, combined with optimized pitch angles during core twisting. Cores are twisted around a central tensile-resistant core member with short lay lengths, ensuring that compressive and tensile loads are distributed evenly across the bundle structure.

In multi-axis robotic joints, cables undergo simultaneous torsional twisting and axial bending. A standard dynamic harness will quickly experience "corkscrewing"—a failure mode where internal cores bunch up and burst through the outer jacket. Premium robotic harness designs utilize specialized low-friction PTFE or expanded TPTFE core wraps, paired with a pressure-extruded inner jacket that lock the twisted conductors in position while allowing internal core slip. Outer jackets are pressure-extruded into the core gaps rather than tubed over, providing physical support that retains the cable geometry throughout millions of torsional cycles.

  1. Optimized Lay Lengths: Cores are bundled with tight, uniform lay lengths centered around a central strain-relief element to balance internal mechanical forces.

  2. Low-Friction Separators: Non-woven fleece or PTFE tape wraps separate the core bundle from the braid shield, preventing friction heat build-up during rapid motion.

  3. Flex-Tolerant Shielding: Braided copper shields are applied with optimized braid angles that expand and contract smoothly during linear bending.

Installation & Cable Drag Chain Tips: Always maintain a minimum bend radius of 7.5x to 10x the overall cable diameter for continuous-flex drag chain applications, and 12x to 15x for torsional robot applications. Never cable-tie wires tightly within a drag chain; conductors must be allowed to float freely within their designated chain separators to prevent structural strain and friction damage.

Shielding and Mitigation Technologies for Electromagnetic Interference

High-performance EMI shielding integrated within an industrial Wiring Harness isolates delicate low-voltage sensor telemetry from high-voltage motor drives, switching power supplies, and induction equipment.

Modern automated factories are dense electromagnetic environments. High-frequency Pulse-Width Modulation signals originating from Variable Frequency Drives and servo amplifiers generate intense electromagnetic and radio-frequency noise. If an industrial Wiring Harness lacks proper shielding, this electromagnetic noise couples into neighboring analog sensor lines, resulting in false PLC triggers, sensor drift, lost communication frames, and erratic motion control behavior.

Effective EMI mitigation requires a multi-layered shielding approach. For low-frequency electromagnetic interference, high-density tinned copper braided shields provide superior ground reference path low impedance. For high-frequency radio-frequency interference, aluminum-laminated foil shields backed by a tinned copper drain wire offer 100% optical coverage. Advanced hybrid harness designs combine an inner aluminum/polyester foil wrap around individual signal pairs with an overall tinned copper braid shield covering the entire cable core, achieving optical coverage ratings exceeding 85% to 90% while maintaining high flex capability.

Proper shield termination is as critical as shield construction. Pigtail shield ground terminations act as high-impedance inductors at high noise frequencies, rendering the shield ineffective. To achieve optimal noise suppression, industrial harnesses utilize 360-degree metallic shield termination through EMC-compliant cable glands or conductive metal connector backshells. This establishes a low-impedance path to chassis ground across the entire surface area of the braid. Integrating robust shielded sensor wiring harness interconnects guarantees that high-resolution measurement signals remain uncorrupted as they travel through noisy motor control conduits.

EMI Shielding Performance Characteristics

Shield Type

Construction Topology

Optical Coverage

Attenuation Frequency Range

Ideal Environment

Aluminum / Polyester Foil

Metal foil bonded to polyester film

100%

High Frequency (> 10 MHz)

Static high-frequency data lines, clean rooms

Tinned Copper Braid

Woven micro-copper wire mesh

80% to 95%

Low to Mid Frequency (< 10 MHz)

Dynamic flex drag chains, motor feedback

Combination Foil + Braid

Inner foil wrap + Outer copper braid

100% Foil / 85%+ Braid

Broadband (10 kHz to 1 GHz)

Industrial Ethernet, high-noise VFD proximity

Spiral / Serve Shield

Helically wrapped copper wires

90% to 98%

Medium Frequency

High-flex audio and light-duty control lines

Industry-Specific Applications across Smart Manufacturing Sectors

Industrial Wiring Harness networks serve as customized backbone solutions configured to meet stringent operational, thermal, and chemical demands across diverse automated manufacturing sectors.

Every manufacturing sector presents unique environmental and mechanical challenges that dictate cable assembly architecture. In modern industrial operations, selecting off-the-shelf commercial wiring leads to fast material failure. Customized cable harnesses are engineered with specific polymer blends, contact platings, and mechanical geometries optimized for localized field conditions.

  1. Automotive Assembly and Body-in-White Lines: Robotic welding cells demand cable assemblies that resist molten weld-slag spatter, high thermal spikes, and severe multi-axis torsion. Specialized silicone-jacketed or weld-spatter-resistant PUR harnesses prevent hot slag from burning through insulation layers, protecting internal power and fieldbus control conductors.

  2. Food, Beverage, and Pharmaceutical Processing: Packaging and processing equipment undergoes daily washdown protocols utilizing high-pressure, 80 C water streams combined with caustic alkaline and acid cleaning agents. Harness assemblies must feature IP69K ingress ratings, food-grade stainless steel coupling nuts, and chemical-resistant PVC or TPE jacketing materials that resist degradation under aggressive sanitation regimes.

  3. Semiconductor and Cleanroom Manufacturing: Automated wafer handling robotics require high-flex cable harnesses that release minimal particulates into the environment. Materials must pass stringent outgassing tests under vacuum conditions. Harnesses utilize non-hygroscopic PTFE conductor insulation and specialized cleanroom-certified polyurethane outer jackets to preserve ISO Class 1 cleanroom environments.

Sector-Specific Harness Selection Requirements

Industry Sector

Primary Environmental Hazards

Required Cable Standards

Key Mechanical Feature

Automotive Welding

Weld slag, high heat, multi-axis torsion

UL 758, CE, RoHS

Weld-spatter resistant PUR jacket, anti-rotational coupling

Food & Beverage

Caustic chemicals, 100 bar washdowns

IP69K, FDA 21 CFR, Ecolab

316L Stainless steel hardware, hydrophobic TPE jacket

Semiconductor

Outgassing, static buildup, airborne particles

ISO 14644-1 Class 1, IPA resistant

Low-outgassing FEP core insulation, cleanroom packaging

Logistics & Material Handling

Constant motion flex, impact, cold storage

UL VW-1, CSA FT1

Cold-bend flexible PUR, high abrasion resistance braid

Maintenance Strategy & Quality Inspection: Implement thermal imaging inspection across high-current wiring harnesses annually during scheduled shutdown windows. Hot spots identified at terminal block terminations or connector pins indicate rising contact resistance long before complete open-circuit failures occur, enabling preventative terminal re-torquing or harness segment replacement.
