Navigating contract manufacturing pricing often frustrates buyers. Opaque quotes make accurate budgeting incredibly difficult. You need precise figures, not generic estimates. Custom manufacturing costs vary wildly across different industries. You might pay under $10 for simple routed cables. Alternatively, complex aerospace-grade configurations can exceed $1,000. It depends entirely on your specific design requirements. We built this guide to offer a transparent, procurement-focused framework. It helps you calculate true production expenses effectively. You will learn how to optimize your technical specifications. We also show you how to avoid hidden fees in your production pipeline. Accurate forecasting prevents costly surprises during manufacturing. Let us break down exactly where your money goes.
Labor typically accounts for the largest percentage (often 50-70%) of total harness production costs due to the limitations of automated routing for complex branches.
Non-Recurring Engineering (NRE) and custom tooling fees heavily impact low-volume prototyping but amortize efficiently at scale.
Over-specifying materials (e.g., unnecessary IP ratings or mil-spec connectors) is the most common cause of budget overruns.
Partnering with an IPC/WHMA-A-620 certified manufacturer minimizes the hidden costs of failure, rework, and field recalls.

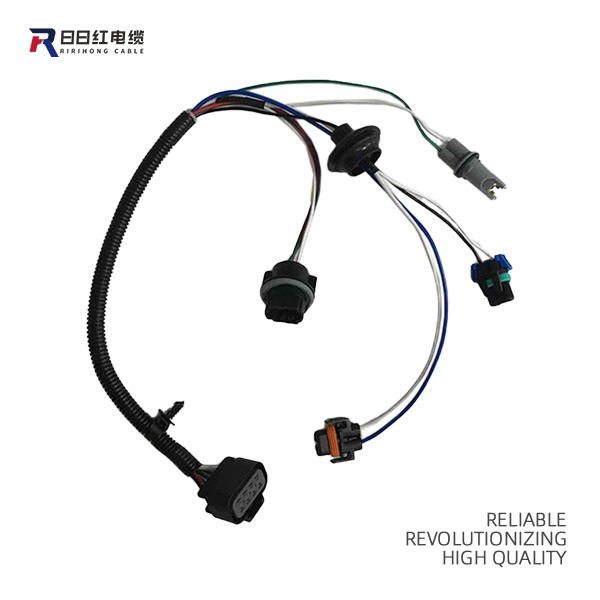

Every custom Wiring Harness consists of three primary cost pillars. You must understand these categories to control your budget. Direct materials, labor, and engineering fees form the baseline quote. Each category carries distinct variables. Let us explore them in detail.
Your Bill of Materials dictates the raw physical costs. Wire and cable choices impact pricing significantly. American Wire Gauge (AWG) sizing determines copper volume. Conductor materials also shift prices. Standard PVC insulation costs very little. Specialized Teflon or Tefzel jackets cost substantially more. They offer chemical resistance and high-temperature tolerance.
Terminals, pins, and connectors represent another major expense. Off-the-shelf standard connectors keep budgets lean. Proprietary components from brands like TE Connectivity or Deutsch command premium prices. Protective coverings add the final material layer. Basic split loom tubing is highly affordable. However, specialized heat shrink, braided sheathing, or DR-25 shrink materials increase costs rapidly.
Specify equivalent alternate brands on your BOM to prevent supply chain delays.
Use standard PVC insulation unless environmental conditions mandate premium jackets.
Group multiple ground wires into a single robust connector to save terminal costs.
Assembly requires extensive human intervention. You cannot fully automate complex branching configurations. Point-to-point connections sometimes utilize automated machines. Multi-branch layouts demand manual dexterity. Human operators must route wires over complex pin boards.
Several manual tasks drive your labor rates. Operators cut and strip individual wires. They crimp terminals onto conductor ends manually. Routing these wires through tight protective sleeves takes time. Technicians must tie branches off securely. Finally, they perform rigorous manual testing. Labor often consumes over half of your total budget.
Manufacturers charge setup costs for new production runs. These are Non-Recurring Engineering (NRE) fees. You only pay them once per design revision. Custom molds or applicator dies add significant upfront expense. Specific terminals require unique crimping applicators.
Engineers must fabricate physical testing boards. They create custom fixture layouts for assembly. These initial investments feel heavy during prototyping. However, they amortize quickly during high-volume production. Volume effectively dilutes your NRE burden.
Cost Category | Primary Drivers | Impact on Low Volume | Impact on High Volume |
|---|---|---|---|
Direct Materials | Connector brands, wire gauge, jacket type | Moderate (Retail pricing) | High (Bulk discount applied) |
Labor & Assembly | Manual routing, crimping, tying, testing | High (Manual setup) | High (Still requires human touch) |
NRE & Tooling | Applicator dies, test boards, engineering time | Very High | Negligible (Amortized) |
Standardizing a quote requires detailed data. Manufacturers analyze five specific variables before pricing your project. You can control many of these factors. Adjusting them strategically protects your margins.
Production Volume & Economies of Scale
Your order quantity changes everything. Minimum Order Quantities (MOQs) affect per-unit pricing dramatically. Prototype runs carry massive setup burdens. The manufacturer spends hours preparing machines for just ten units. Bulk orders unlock major efficiencies. Automated wire-cutting machines run continuously. Terminal-crimping processes speed up. High volume dilutes overhead costs.
Design Complexity & Branching
Simple point-to-point configurations assemble quickly. Multi-breakout designs require intricate routing. High circuit density forces manufacturers to build advanced routing boards. Each physical branch introduces new failure points. Operators spend more time tying off these intersections. Complex branching directly inflates your labor invoice.
Environmental & Compliance Requirements
Harsh environments demand robust shielding. Achieving IP67 or IP68 waterproof ratings requires sealed connectors. You might need extreme temperature tolerance. EMI/RFI shielding requires special braided materials. Regulatory compliance also adds overhead. Securing UL certification, RoHS compliance, or automotive IATF 16949 standards involves rigorous auditing. Compliance documentation costs time and money.
Quality Standards & Tolerance Levels
Standard commercial grade products assemble faster. Mission-critical applications demand IPC/WHMA-A-620 Class 2 or Class 3 adherence. These strict standards dictate exact wire prep and crimp heights. Stringent testing protocols extend production time. Operators perform Hi-Pot testing and pull-force testing. Continuous conductivity tracking ensures zero defects. Higher quality standards naturally increase production costs.
Supply Chain & Lead Times
Speed costs money. Expedited shipping adds a premium to your quote. Sourcing scarce components disrupts standard pricing models. Relying on single-source, proprietary connectors extends lead times. Standardization keeps costs low. Off-the-shelf components ship quickly. They also carry predictable price tags.
Many engineers over-specify their designs. They request IP68 waterproof connectors for internal control cabinets. They demand military-spec wire for basic industrial machinery. Over-specifying materials is the most common cause of budget overruns. Review your true environmental needs carefully.
Companies often debate building products internally versus outsourcing. Internal production seems cheaper initially. You eliminate the supplier's profit margin. However, actual financial analysis reveals a different reality. Internal setups carry massive hidden expenses.
Internal production introduces significant overhead. You must hire dedicated manufacturing engineers. These specialists command high salaries. You also need expensive automated crimping presses. A single high-quality applicator machine costs tens of thousands. Furthermore, you must manage raw component inventory.
Facility footprint constraints pose another challenge. Production lines consume valuable warehouse space. Your labor force might experience idle periods during production lulls. Paying idle technicians drains your profitability. These hidden expenses compound rapidly over a fiscal year.
Outsourcing unlocks immediate access to specialized tooling. You avoid massive upfront capital expenditures. Contract manufacturers already own the applicator dies and automated presses. They also leverage enormous bulk purchasing power. They buy raw wire miles at a time. This drives material costs down significantly.
You also shift quality control liability. Contract manufacturers absorb yield loss risks. If a batch fails testing, they rebuild it. You only pay for functional, passed units. This transfers financial risk away from your balance sheet. The predictability of outsourced pricing stabilizes your operational budget.
Expense Type | In-House Manufacturing | Contract Outsourcing |
|---|---|---|
Capital Equipment | High upfront CapEx (Presses, dies, testers) | Zero upfront CapEx |
Labor Efficiency | Prone to idle time during slow demand | Pay only for assembled units |
Material Pricing | Higher costs due to low volume purchasing | Lower costs via supplier bulk discounts |
Quality Risk | Internal business absorbs scrap and rework | Supplier absorbs scrap and rework |
Strategic design choices lower production costs. Value-engineering your Cable Assembly requires early planning. You must evaluate every component critically. Minor adjustments yield massive savings over high-volume runs. Follow these proven engineering strategies.
Custom-molded plugs look impressive. However, they require expensive tooling and long lead times. Design around readily available, off-the-shelf connectors whenever possible. Standard connectors perform reliably at a fraction of the cost.
Evaluate your wire color variations. Many engineers specify ten different colored wires. If you hide these wires within a braided loom, color becomes irrelevant. Standardizing on just two or three wire colors reduces inventory complexities. This saves setup time on the factory floor.
Engineers often apply overly tight length tolerances automatically. They specify a variance of just millimeters. Avoid tight length tolerances unless physically necessary for the installation envelope. Strict tolerances increase scrap rates dramatically. Operators spend more time measuring and trimming. Looser tolerances speed up production without sacrificing functional performance.
Do not finalize your CAD drawing in isolation. Engage manufacturing engineers early. Show them your preliminary schematics. Allow the manufacturer to suggest equivalent alternative components. They understand the current supply chain landscape perfectly. They can recommend form, fit, and function replacements. These suggestions often cut material costs substantially.
Vague requests generate inaccurate estimates. Manufacturers need precise documentation to calculate exact pricing. Providing a complete data package accelerates the quoting process. It eliminates assumptions and reduces risk buffers.
Detailed Bill of Materials (BOM): Include approved manufacturer part numbers. List permissible alternates for every single component.
2D Schematics and 3D CAD Models: Show exact breakout points clearly. Define exact branch lengths. Map out the intended routing paths.
Pinout Charts: Detail exactly which wire connects to which pin cavity.
Testing Requirements: Specify if you need Hi-Pot, continuity, or pull-force testing.
Technical data only tells half the story. You must define your business expectations clearly. State your target pricing if you have established one. Share your exact volume expectations honestly. Prototyping quantities require different handling than year-one production projections.
Provide your required delivery schedules up front. Highlight any necessary compliance certificates. If you need RoHS documentation or UL tracing, say so immediately. Clear business terms ensure the quote matches your actual operational reality.
The cost to manufacture custom connection solutions involves many moving parts. Labor, material specifications, and compliance levels dictate your final invoice. Complex branching requires extensive manual routing. Over-specifying materials inflates your budget unnecessarily. However, strategic value-engineering keeps expenses manageable.
Remember that the cheapest initial quote often hides future failure costs. Evaluate partners based on their quality systems. Prioritize engineering support over rock-bottom unit prices. A reliable manufacturer acts as an extension of your team. They catch design flaws before production begins. Submit your schematics or BOM today. Request a transparent, line-item cost evaluation and manufacturability review to optimize your next project.
A: Labor typically accounts for 50% to 70% of the total cost. This depends heavily on routing complexity. While wire prep utilizes automation, assembling multi-branch layouts demands manual skill. Technicians must route cables, insert pins, and apply protective tape by hand.
A: Prototypes absorb 100% of the Non-Recurring Engineering (NRE) fees. You pay for initial engineering time, fixture building, and machine programming. Prototypes also lack the material discounts and automated labor efficiencies gained during large batch runs.
A: Racing or aerospace-grade configurations require premium materials. They use Tefzel wire, DR-25 shrink, and Deutsch autosport connectors. They also utilize advanced concentric twisting techniques. These strict requirements often cost 3x to 5x more than standard commercial equivalents.
A: No. While basic wire cutting, stripping, and terminal crimping allow for full automation, final assembly does not. Constructing multi-branch configurations still requires significant manual labor. Operators must physically route wires on boards, insert connectors, and apply external looms.
