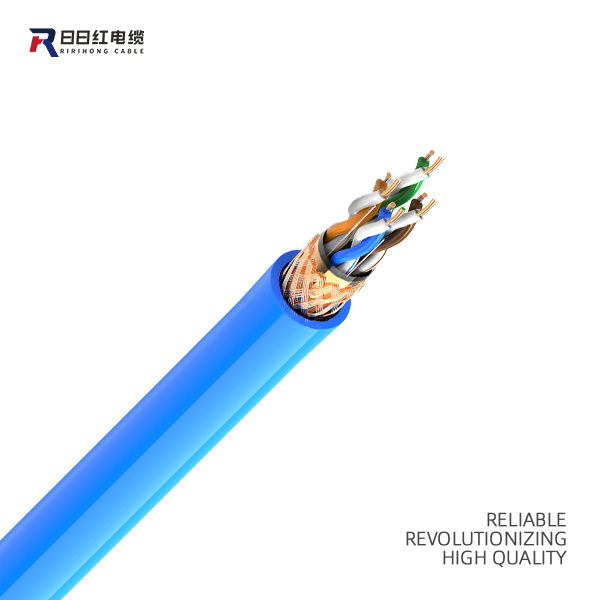

Our Shielded Data Cable is engineered to provide exceptional reliability and performance in environments susceptible to electromagnetic interference (EMI). The shielded design ensures that the data being transmitted remains intact, reducing the chances of interference that can lead to signal degradation or loss. This cable is ideal for use in high-speed data transfer applications like networking, telecommunications, industrial control systems, and more.
The core of the cable is made from high-quality copper, offering excellent conductivity and durability. Its outer shielding, which can be made from materials such as aluminum or copper foil, provides an additional layer of protection, allowing the cable to maintain optimal performance even in environments with significant electromagnetic activity.
Applications:
Telecommunications: Perfect for telephone lines, broadband, and fiber-optic network systems.
Networking: Ideal for connecting various networking components while maintaining high-speed, interference-free communication.
Industrial Automation: Ensures stable data communication in automated systems, reducing downtime and enhancing productivity.
Audio/Video Systems: The shielded construction also makes it ideal for high-quality audio and video equipment.
Whether you are building a commercial network, upgrading industrial automation systems, or setting up secure communication lines, this shielded data cable ensures that your data travels safely and securely with minimal signal loss.
| Specification | Description |
|---|---|
| Cable Type | Shielded Data Cable |
| Conductor Material | High-quality copper |
| Insulation Type | PVC or PE (Polyethylene) |
| Shielding Material | Aluminum Foil, Copper Foil, or Combination |
| Voltage Rating | 300V - 600V |
| Temperature Rating | -40°C to +80°C |
| Shielding Coverage | 100% Shielded |
| Outer Jacket Material | PVC or LSZH (Low Smoke Zero Halogen) |
| Cable Length | Customizable (up to 1000 meters) |
| Application | Telecommunications, Networking, Industrial Automation |
| Certifications | UL, CE, RoHS, ISO |
Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms
RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency
Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.
| Cable Type | AWG Size | mm² | Voltage Rating | Ampacity (A) | Insulation Type | Conductor Material | Core Type | No. of Conductors | Shielding Type |
| STP Ethernet Cat5e | 24 AWG | 0.205 mm² | 48V (PoE) | ~0.5 | PE / LSZH | Bare/Tinned Copper | Solid or Stranded | 8 (4 Twisted Pairs) | Foil over each pair + drain |
| STP Ethernet Cat6 | 23 AWG | 0.258 mm² | 48V (PoE+) | ~0.577 | HDPE / LSZH | Bare/Tinned Copper | Solid or Stranded | 8 (4 Twisted Pairs) | Foil + Overall Braid |
| RS-485 Shielded | 22 AWG | 0.33 mm² | 300V | <5 | PVC / XLPE / FEP | Tinned Copper | Stranded | 2 – 4 | Foil + Drain Wire |
| CAN Bus Shielded | 20 AWG | 0.52 mm² | 12–24V | ~5 | XLPE / PVC | Tinned Copper | Stranded | 2 (Twisted Pair) | Foil + Optional Braid |
| USB 2.0 Shielded | 28 (Data), 24 (Power) | 0.081 / 0.205 mm² | 5V | 0.5 – 2.5 | PVC / TPE | Tinned Copper | Stranded | 4 | Foil + Braided Shield |
| ControlNet Cable | 22 AWG | 0.33 mm² | 300V | ~3 | PVC / XLPE | Bare Copper | Stranded | 2 (Twisted Pair) | Foil + Braid |
| Profibus DP Cable | 22 AWG | 0.33 mm² | 250V | <3 | PE / LSZH | Bare/Tinned Copper | Solid / Stranded | 2 | Foil + Braid + Drain Wire |
| Multiconductor Shielded Control Cable | 18 – 12 AWG | 0.82 – 3.3 mm² | 300V – 600V | 7 – 20 | PVC / XLPE / TPE | Stranded Tinned Copper | Stranded | 2 – 25+ | Overall Foil or Braid |
| Shielded Audio Cable (Balanced) | 24 – 22 AWG | 0.205 – 0.33 mm² | 100 – 250V | 2 – 5 | PE / PVC | Bare / Tinned Copper | Stranded | 2 (Twisted Pair) | Foil / Foil + Braid |
Use shielded data cables when:
There's heavy EMI from motors, drives, or transformers
Signal accuracy and low data loss are critical
Long cable runs pass near power lines or switching equipment
You're wiring audio/video systems, medical instruments, or precision sensors
Industrial Automation Transmit control signals between PLCs, sensors, and motors
Medical Equipment Carry high-fidelity signals for sensitive diagnostic tools and monitors
Broadcast & AV Systems Prevent noise in video/audio signal transmission over long distances
Military & Aerospace Secure and stable communication in high-EMI environments
Telecom & Networking Ensure stable, high-speed data transfer (e.g., Cat6a STP Ethernet)
Data Centers Eliminate crosstalk and EMI from adjacent power cables
Railway & Transportation Systems Reliable communication amidst high voltage and vibration
Measurement Systems Transmit low-voltage, analog/digital signals with high accuracy
Apply cable base on its insulation property
Always de-energize the system before working on cables
Proper PPE duing operation
| Shield Type | Protection Against | Usage |
| Foil Shield | EMI/RFI, high-frequency noise | Lightweight, ideal for audio/data cables |
| Braid Shield | Low-frequency noise, mechanical strength | Industrial/motor control environments |
| Foil + Braid Combo | All-around EMI/RFI protection | Harsh, high-noise areas (e.g., robotics) |
| Individually Shielded Pairs | Crosstalk between pairs | Precision analog/digital signal cabling |
