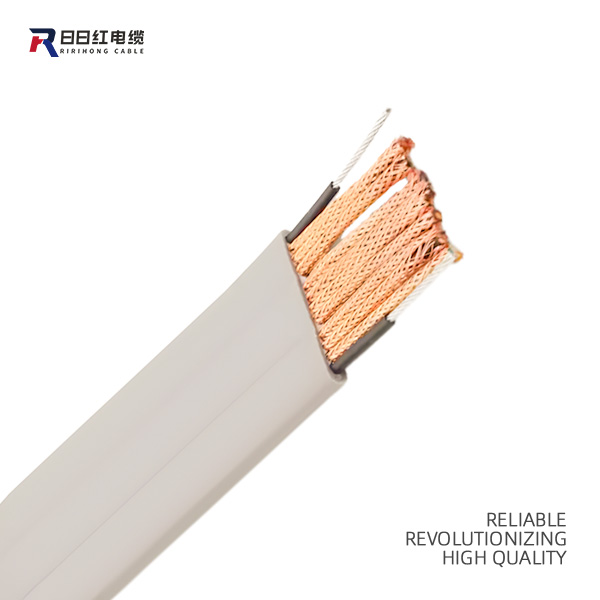

The Special Electric Cable is engineered to deliver reliable performance in harsh environments. Featuring high-grade copper conductors and superior insulation, this cable offers exceptional conductivity and protection against potential electrical faults. Designed to handle both high and low-voltage applications, it is particularly well-suited for use in industrial machinery, automotive systems, power distribution, and data transmission networks.
This cable’s construction ensures optimal signal integrity and reduced interference, making it a preferred choice for high-performance electrical systems. The Special Electric Cable is available in multiple configurations, including shielded and unshielded options, to cater to different operational needs. Whether for heavy-duty industrial use or more sensitive data transmission, this cable is built to meet the diverse challenges of modern electrical systems.
The robust materials used in the cable construction ensure superior mechanical strength and resistance to environmental stressors such as moisture, UV rays, and extreme temperatures. It is also highly flexible, enabling easy installation in tight spaces without compromising performance. Additionally, the Special Electric Cable complies with international safety and quality standards, making it a reliable solution for mission-critical systems.
| Specification | Details |
|---|---|
| Cable Type | Special Electric Cable |
| Conductor Material | Copper |
| Insulation Material | PVC, XLPE (Cross-Linked Polyethylene) |
| Voltage Rating | 600V, 1000V |
| Temperature Range | -40°C to 90°C |
| Shielding Type | Shielded (Aluminum or Copper) |
| Applications | Industrial, Automotive, Power Transmission, Data Networks, Renewable Energy |
| Compliance | CE, UL, TUV |
| Length Options | Custom lengths available |
| Flame Resistance | Flame retardant, suitable for industrial environments |
| Special Features | Flexible, UV resistant, moisture resistant, durable |
Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms
RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency
Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.
| Size (mm²) | AWG | Voltage Rating | Ampacity (A) | Insulation Material | Armor | Shielding | Conductor Material | Core Type | # of Conductors | Temp Rating (°C) | # of Strands |
| 0.5 mm² | 20 AWG | 300V | 11–14 A | PUR / TPE / Silicone / PTFE | Optional Steel Braid | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–50+ | -60°C to +180°C | 7 or 19 Strands |
| 0.75 mm² | 18 AWG | 300V / 600V | 13–17 A | PUR / TPE / Silicone / PTFE | Optional Steel Braid | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–50+ | -60°C to +180°C | 7 or 19 Strands |
| 1.0 mm² | 17 AWG | 300V / 600V | 16–20 A | PUR / TPE / Silicone / PTFE | Optional Steel Braid | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–50+ | -60°C to +180°C | 7 or 19 Strands |
| 1.5 mm² | 15 AWG | 300V / 600V | 20–25 A | PUR / TPE / Silicone / PTFE | Optional Steel Braid | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–50+ | -60°C to +180°C | 7 or 19 Strands |
| 2.5 mm² | 13 AWG | 600V / 1000V | 25–32 A | PUR / TPE / Silicone / PTFE | Optional Steel Wire Armor | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–50+ | -60°C to +180°C | 7 or 19 Strands |
| 4.0 mm² | 11 AWG | 600V / 1000V | 32–41 A | PUR / TPE / Silicone / PTFE | Optional Steel Wire Armor | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–30+ | -60°C to +180°C | 7 or 19 Strands |
| 6.0 mm² | 9 AWG | 600V / 1000V | 41–53 A | PUR / TPE / Silicone / PTFE | Optional Steel Wire Armor | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–20+ | -60°C to +180°C | 7 or 19 Strands |
| 10 mm² | 7 AWG | 1000V | 57–70 A | PUR / TPE / Silicone / PTFE | Optional Steel Wire Armor | Overall Foil or Braid | Tinned Copper / Bare Copper | Single / Multicore | 2–10 | -60°C to +180°C | 7 or 19 Strands |
Armor － optional steel wire braid or flexible armor for mechanical protection.
Shielding － foil shield (100% coverage) + optional braided shield (70–90% coverage) to block EMI/RFI.
Conductor Material － usually tinned copper for corrosion resistance; sometimes silver-plated copper for aerospace.
Core Configuration － available as single core, pair, triad, or multi-core cables (up to 50+ cores).
Temperature － range From -60°C (cryogenic) to +180°C (high heat), depending on jacket and insulation.
Stranding － flexible stranded construction (7 or 19 strands typical, sometimes finer 32/0.20 for ultra-flex).
Robotics and Automation highly flexible cables that withstand constant bending, twisting, and movement.
Marine and Offshore Platforms cables that resist saltwater, oil, and extreme corrosion.
Mining and Heavy Industry ruggedized cables built for mechanical abuse, mud, and chemical exposure.
Railway and Transportation Systems fire-resistant, low-smoke, and low-toxicity cables for tunnels, trains, and stations.
Defense and Military Applications cables designed to resist electromagnetic pulses (EMP), radiation, or battlefield conditions.
Aerospace and Satellites lightweight, radiation-proof, and temperature-resistant cables for extreme altitude and space.
Medical Equipment ultra-reliable, shielded cables for sensitive imaging and surgical systems.
Renewable Energy (Solar, Wind) UV-resistant, weatherproof cables for outdoor and high-voltage DC applications.
Apply cable base on its insulation property
Always de-energize the system before working on cables
Proper PPE duing operation
| Feature | Why It Matters |
| High Flexibility (Drag Chain Rated / Torsion Resistant) | Allows continuous movement without damage — essential for robots, conveyors, and automation arms. |
| Chemical and Oil Resistance | Ensures cable lifespan in harsh environments like offshore rigs, factories, and mines. |
| Fire Resistance and Low Smoke, Zero Halogen (LSZH) | Reduces toxic fumes and fire spread — critical for tunnels, railways, and public buildings. |
| UV and Weather Resistance | Prevents degradation under sunlight and outdoor exposure — ideal for solar, wind farms, and marine use. |
| Extreme Temperature Tolerance (-60°C to +200°C) | Keeps working in freezing cold, high heat, or space conditions without cracking or melting. |
| Shielding Against EMI/RFI | Protects sensitive data and signals from electromagnetic interference — vital for medical, military, and communication systems. |
| Lightweight and High Strength (for Aerospace) | Reduces weight while maintaining durability — crucial for satellites and aircraft. |
| Custom Jacket Materials (PUR, TPE, PTFE, Silicone) | Enables adaptation to special environments: abrasion, flexibility, chemical resistance, or hygiene needs. |
| Waterproof and Submersible (IP68 rated) | Allows continuous operation under water or heavy rain — key for underwater sensors, pumps, and offshore platforms. |
