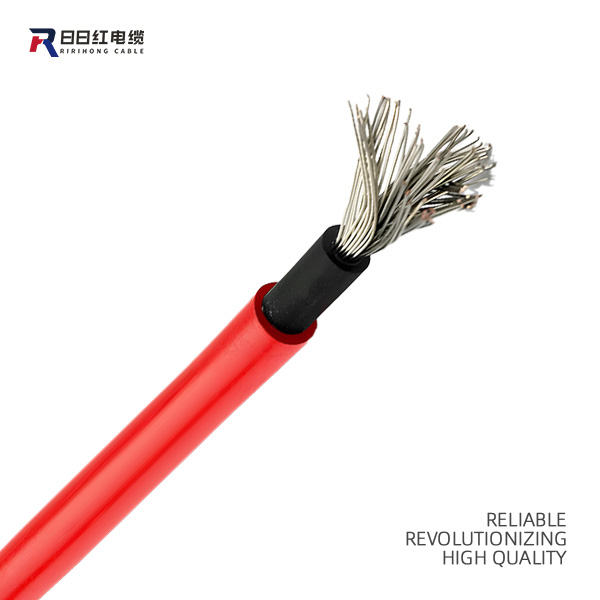

Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms
RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency
Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.
| Parameter | Specification |
| Rated Voltage | 1500 V DC |
| Conductor Material | Tinned Copper (Stranded) |
| Insulation Material | XLPO (Cross-linked Polyolefin), UV-resistant, Halogen-Free, Flame Retardant |
| Sheath Material | XLPO, LSZH (Low Smoke Zero Halogen) |
| Core Type | Single-core (standard), Multi-core available on request |
| Temperature Rating | -40°C to +90°C (operating), up to +120°C (short-circuit) |
| Cross Section (mm²) | AWG | Conductor Ø (mm) | Outer Ø (mm) | Approx. Ampacity @ 60°C |
| 1.5 mm² | 16 AWG | ~1.4 mm | ~4.8 - 5.2 mm | 23 A |
| 2.5 mm² | 14 AWG | ~1.8 mm | ~5.5 - 6.1 mm | 30 A |
| 4 mm² | 12 AWG | ~2.2 mm | ~6.0 - 6.8 mm | 41 A |
| 6 mm² | 10 AWG | ~2.6 mm | ~6.5 - 7.3 mm | 55 A |
| 10 mm² | 8 AWG | ~3.6 mm | ~7.4 - 8.4 mm | 75 A |
| 16 mm² | 6 AWG | ~4.5 mm | ~9.0 - 10.0 mm | 100 A |
| 25 mm² | 4 AWG | ~5.6 mm | ~10.5 - 11.5 mm | 135 A |
| 35 mm² | 2 AWG | ~6.7 mm | ~12.5 - 13.5 mm | 170 A |
| 50 mm² | 1 AWG | ~7.9 mm | ~14.0 - 15.0 mm | 200 A |
| 70 mm² | 2/0 AWG | ~9.5 mm | ~15.5 - 17.0 mm | 250 A |
| 95 mm² | 3/0 AWG | ~11.0 mm | ~18.0 - 19.5 mm | 290 A |
| 120 mm² | 4/0 AWG | ~12.5 mm | ~20.0 - 22.0 mm | 320 A |
| 150 mm² | -- | ~13.8 mm | ~22.5 - 24.0 mm | 350 A |
| 185 mm² | -- | ~15.5 mm | ~25.0 - 27.0 mm | 400 A |
| 240 mm² | -- | ~17.5 mm | ~27.0 - 30.0 mm | 450 A |
Panel-to-panel connections, linking multiple solar panels in series
Panel to combiner box, caries DC power from panel strings to a central junction box
Combiner box to inverter(DC side) transmits the collected DC power to the inverter before conversion to AC
Apply cable base on its insulation property
Avoid bends
Always de-energize the system before working on cables
Proper PPE duing operation
| Considerable Feature | Why It Matters |
| UV Resistance | Outdoor installation requires protection from sun. |
| Halogen-Free / Low Smoke | Safer in case of fire. |
| Tinned Copper Conductor | Corrosion resistance, especially in humid areas. |
| XLPE / EPR Insulation | High thermal and electrical resistance. |
| Double Insulation | Enhanced durability and mechanical protection. |
| Flexible (Stranded Core) | For easy routing on rooftops or in tight areas. |
